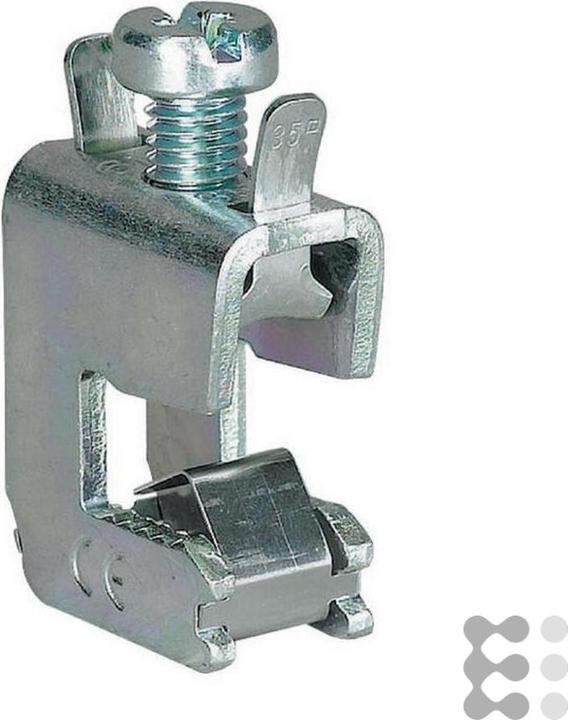

Eaton Terminal Block AKU35/10

Manufacturer: Eaton
Description: Terminal block for conductors 4-35 mm², 10 mm
Type: AKU35/10
Busbar thickness: 10 mm
Busbar width: 0 mm
Suitable for: Flat busbars
Width of the terminal: 15.5 mm
Max. conductor cross-section: 35 mm²
Max. rated operational current Ie: 270 A
Suitable for round conductor connection: yes
Suitable for sector conductor connection: yes
Suitable for flat conductor connection: yes

Eaton Terminal Block AKU35/10: additional details
Universal terminal block for conductors 4-35 mm² AWG 10-AWG 2, directly clamped, 3x9x0.8 or 6x9x0.8, 270 A, usable for all 10 mm thick flat busbars, width = 15.5 mm, clamping space WxH = 10.5 x 11 mm, with integrated retaining spring, with open clamping space and captive sheet metal screw, can be used for SASY60i, SASY185i.
