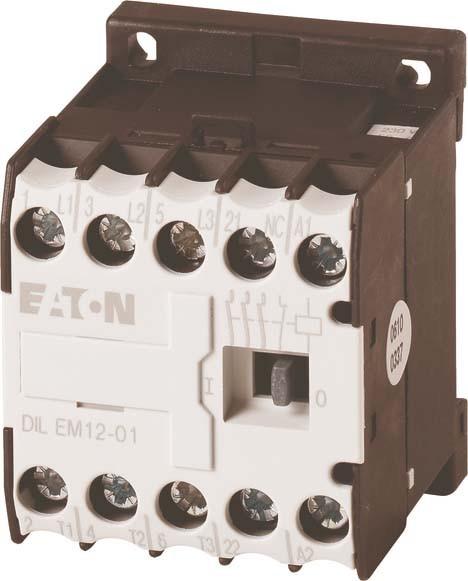

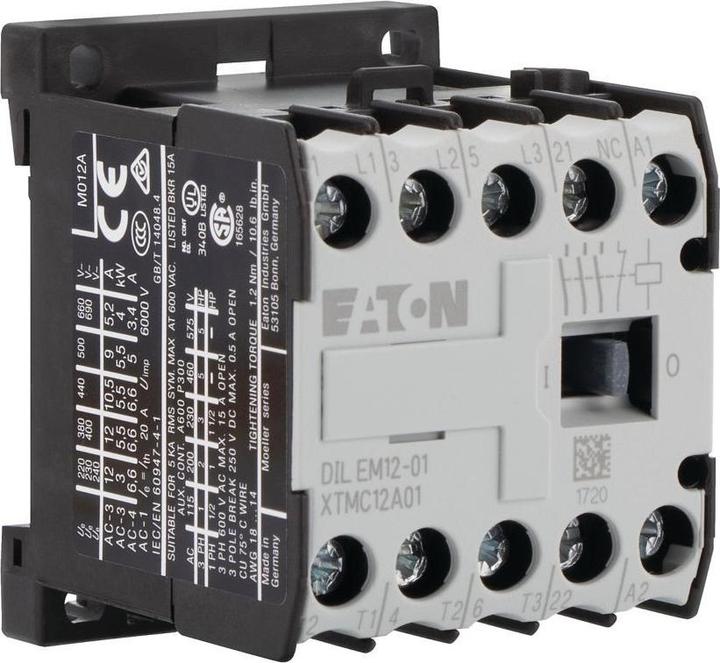

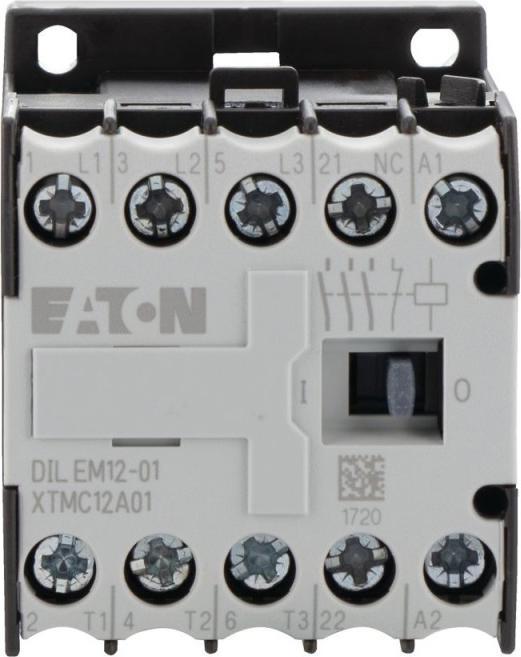

Eaton power contactor DILEM12-01 (24V 50Hz)

Manufacturer: Eaton
Designation: Power contactor
Power rating: 5.5 kW / 400V / AC3
Type: DILEM12-01 (24V 50Hz)
Rated control supply voltage Us at AC 50 Hz: 24 V
Rated control supply voltage Us at AC 60 Hz: 0 V
Rated control supply voltage Us at DC: 0 V
Voltage type for actuation: AC
Rated operational current Ie at AC-1, 400 V: 22 A
Rated operational current Ie at AC-3, 400 V: 12 A
Rated operational power at AC-3, 400 V: 5.5 kW
Rated operational current Ie at AC-4, 400 V: 6.6 A
Rated operational power at AC-4, 400 V: 3 kW
Rated operational power NEMA: 3.7 kW
Suitable for series mounting: No
Number of auxiliary contacts as NC contacts: 1
Connection type main circuit: Screw connection
Number of NO contacts as main contacts: 3

Further details:
Power contactor for motors, small contactor for motors and resistive loads.
Utilisation category:

• AC-1: Non-inductive or low inductive load, resistance furnaces
• AC-3: Squirrel cage motors: Starting, switching off during running
• AC-4: Squirrel cage motors: Starting, reverse braking, reversing, jogging

Connection method: Screw terminals
Description: With auxiliary switch
Poles: 3-pole
Rated operational current AC-3 380 V 400 V: Ie = 12 A
Rated operational current AC-1 conventional thermal current, 3-pole, 50 - 60 Hz open at 40 °C: Ith = Ie = 22 A, enclosed: Ith = 16 A
Rated operational current AC-1 conventional thermal current 1-pole open: Ith = 50 A, enclosed: Ith = 40 A
Max. rated operational power three-phase motors 50 - 60 Hz AC-3:

• 220 V 230 V: P = 3 kW
• 380 V 400 V: P = 5.5 kW
• 660 V 690 V: P = 4 kW

Max. rated operational power three-phase motors 50 - 60 Hz AC-4:

• 220 V 230 V: P = 1.5 kW
• 380 V 400 V: P = 3 kW
• 660 V 690 V: P = 3 kW

Suitable for: DILE
Contact configuration: NC contact: 1
Current type: AC
EAN: 4015081246182.
