Area: DILM
Series: DILM
Number of poles: 3
Coil voltage: 230 V AC @ 50 Hz, 240 V AC @ 60 Hz
Rated contact current: 17 A
Rated contact voltage: 400 V AC
Contact configuration: 3 normally closed, 1 normally open
Number of auxiliary contacts: 1
Power: 7.5 kW (AC3 380–440 V)
Connection type: Screw fastening
Length: 85 mm
Depth: 138 mm

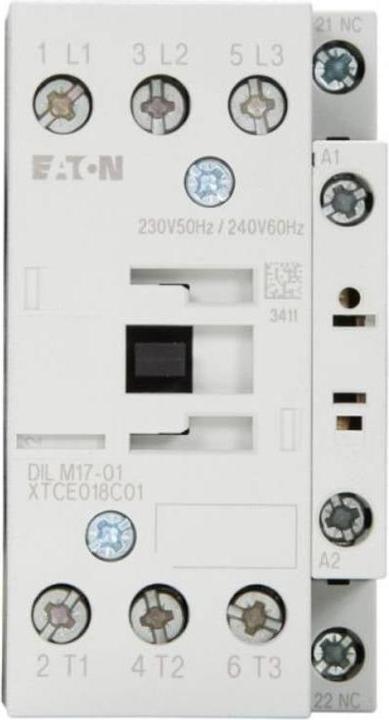

DILM contactors, 3-phase. X Start is the latest generation in the field of contactors, overload protection, and relays from Moeller, based on the proven and tested DIL series. This generation of modular components benefits from technological advancements in motor switching and control, providing users with a range of additional advantages.

Features and benefits: All contactors are modular and identically constructed. The series is extremely robust, suitable for all requirements, resistant to interference, and offers high reliability of the control circuit, even in combination with a PLC. The electronic power adjustment of the magnetic system in DC contactors allows for very small frame sizes, so that AC and DC units have identical dimensions. This now enables the direct arrangement of AC and DC contactors side by side. Three main normally closed contacts in DC contactors from 12 A feature an electronic drive, making coupling relays unnecessary. All DC contactors up to 150 A have an integrated suppression circuit. Connection boxes with double coupling surfaces ensure secure connections when wiring different cross-sections and reduce errors in wiring.
