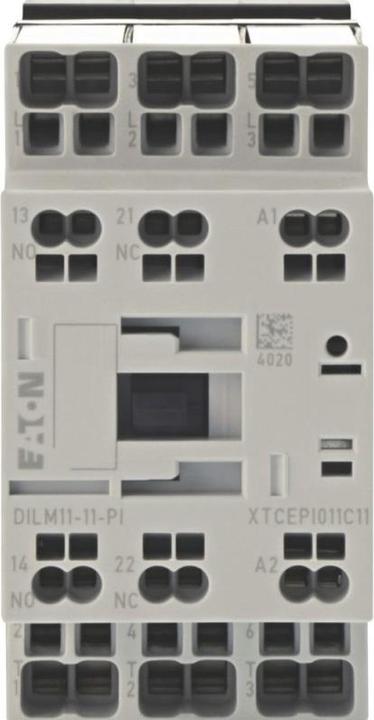

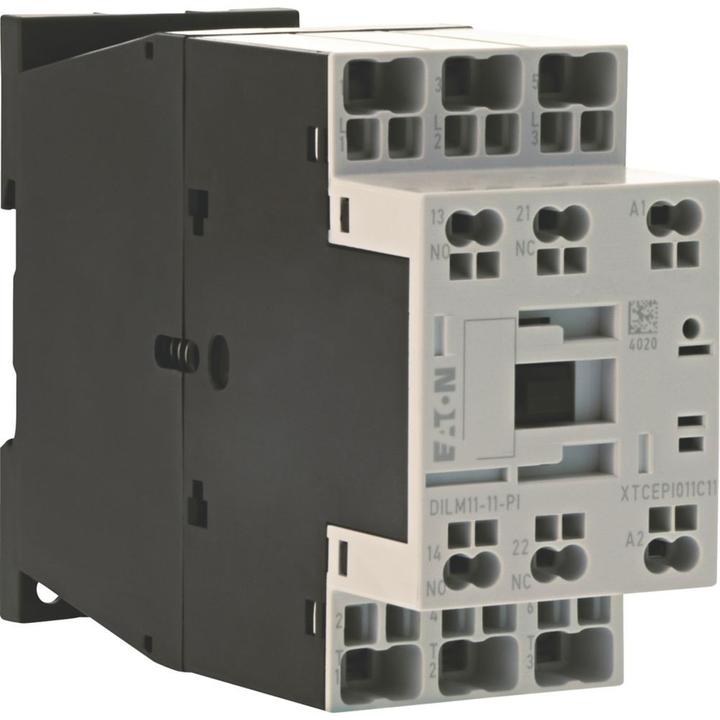

The Eaton power contactor DILM11-11 (24V) is a high-performance relay designed for use in industrial applications. With a rated control supply voltage of 24 V at both 50 Hz and 60 Hz, this device provides reliable control for various electrical loads. It is capable of controlling motors with a power rating of up to 4 kW and is suitable for use in a variety of applications, including non-inductive and lightly inductive loads. The contactor is equipped with three main contacts and offers both normally open and normally closed contacts, allowing for flexible integration into existing systems. The push-in terminals ensure easy and secure connections, while the high rated operational current capacity of up to 45 A at AC-1 and 11 A at AC-3 covers a wide range of applications. This product is not suitable for rail mounting and has been designed for use in environments with temperatures up to 40 °C.

• Suitable for motors of efficiency class IE3
• Connection type: Spring terminal connection
• Usage category: AC-1, AC-3, AC-4
• Number of main contacts: 3-pole
• Push-in terminals for easy installation.
