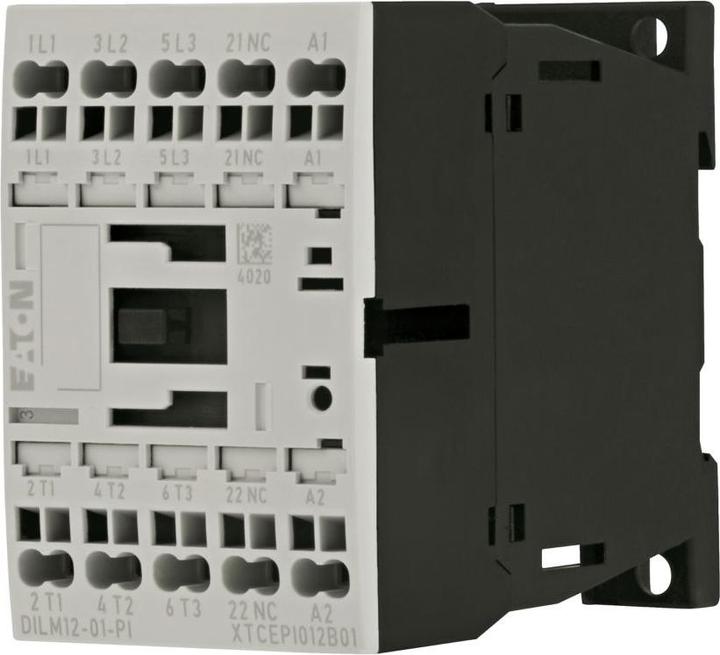

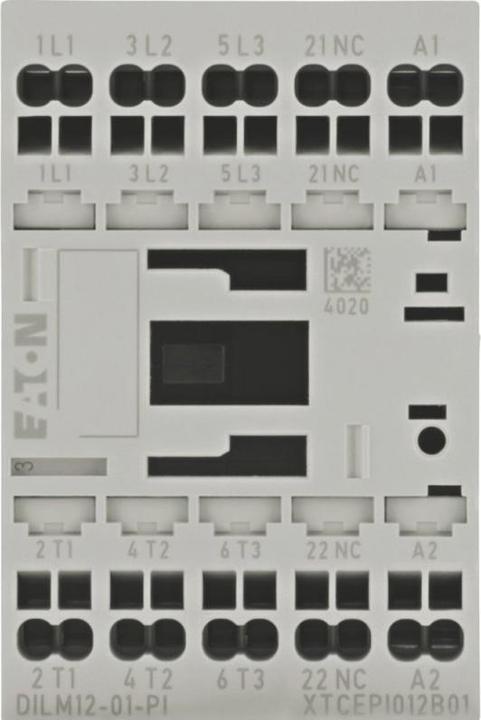

The Eaton DILM12-01 (230V) power contactor is a high-performance relay designed for use in industrial applications. It provides reliable control of motors and other electrical loads. With a rated control supply voltage of 230 V at AC 50/60 Hz, this device is ideal for various applications that require precise control. The DILM12-01 is equipped with three main contacts and supports different usage categories, including AC-1 for non-inductive loads and AC-3 for squirrel cage motors. The push-in terminals allow for easy and secure installation, while the high rated operational current capacity of up to 22 A at AC-1 and 12 A at AC-3 covers a wide range of applications. This relay is not suitable for series installation and offers a robust solution for demanding electrical control requirements.

Suitable for motors in efficiency class IE3. Connection type for the main circuit: spring-loaded connection. Usage categories: AC-1, AC-3, AC-4. Number of auxiliary contacts: 1 normally open. 3-pole with a high rated operational power of up to 5.5 kW.
