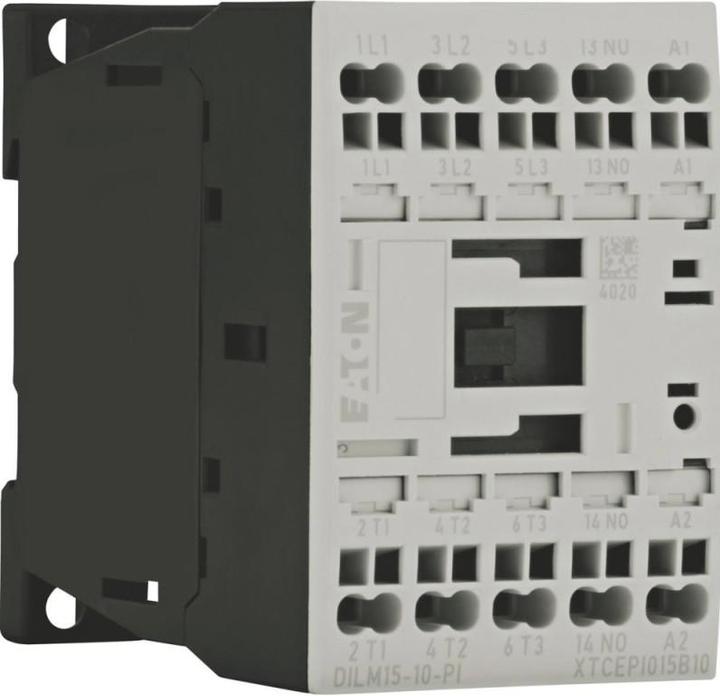

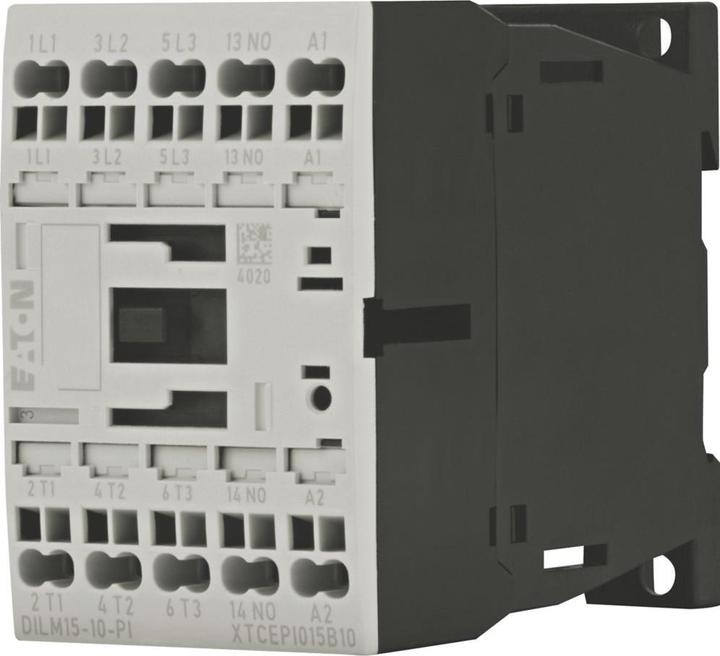

Eaton power contactor DILM15-10 (24V #199251)

Manufacturer: Eaton
Designation: Power Contactor
Type: DILM15-10 (24V #199251)
Rated control supply voltage Us at AC 50 Hz: 24 V
Rated control supply voltage Us at AC 60 Hz: 24 V
Rated control supply voltage Us at DC: 0 V
Voltage type for actuation: AC
Rated operational current Ie at AC-1, 400 V: 22 A
Rated operational current Ie at AC-3, 400 V: 15.5 A
Rated operational power at AC-3, 400 V: 7.5 kW
Rated operational current Ie at AC-4, 400 V: 7 A
Rated operational power at AC-4, 400 V: 3 kW
Rated operational power NEMA: 0 kW
Suitable for series mounting: No
Number of auxiliary contacts as make contacts: 1
Connection type main circuit: Spring-loaded connection
Number of make contacts as main contacts: 3

Further details:
Contactor for motors, contactors up to 170 A, 3-pole, utilization category:
AC-1: Non-inductive or low-inductive load, resistance furnaces,
AC-3: Squirrel-cage motors: Starting, switching off during running,
AC-4: Squirrel-cage motors: Starting, counter-current braking, reversing, jogging.
Connection method: Push-in terminals.
Not suitable for motors of efficiency class IE3.
Number of poles: 3-pole
Rated operational current AC-3 380 V 400 V: Ie = 15.5 A
Rated operational current AC-1 conventional thermal current, 3-pole, 50 - 60 Hz open at 40 °C: Ith = Ie = 22 A, enclosed: Ith = 18 A
Rated operational current AC-1 conventional thermal current 1-pole open: Ith = 50 A, enclosed: Ith = 45 A
Max. rated operational power three-phase motors 50 - 60 Hz AC-3 220 V 230 V: P = 4 kW, 380 V 400 V: P = 7.5 kW, 660 V 690 V: P = 7 kW
Max. rated operational power three-phase motors 50 - 60 Hz AC-4 220 V 230 V: P = 2 kW, 380 V 400 V: P = 3 kW, 660 V 690 V: P = 4.4 kW
Can be combined with auxiliary contacts: DILM12-XHI-PI, DILM32-XHI-PI, DILA-XHI(V)-PI
Contact configuration S = NO contact: 1 S, switching elements according to EN 50012.
Current type: AC/DC: AC actuation
EAN: 4015081973354.
