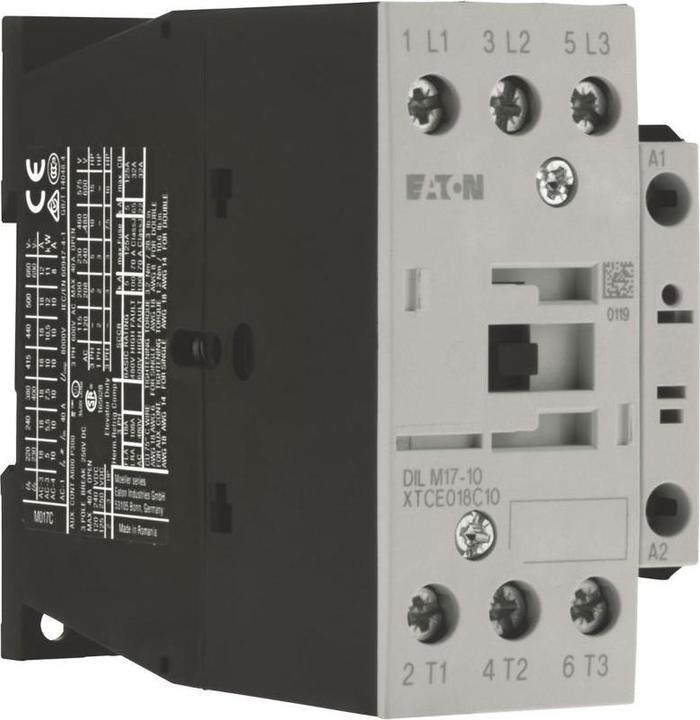

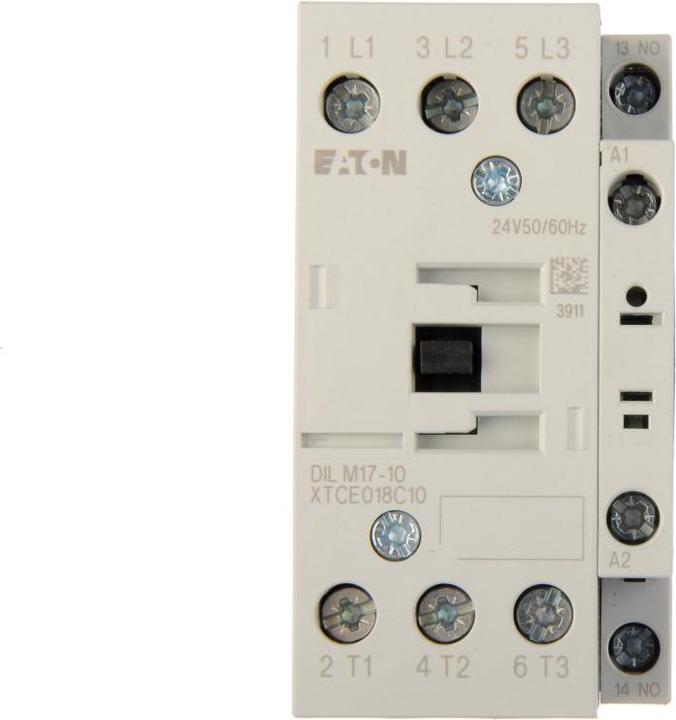

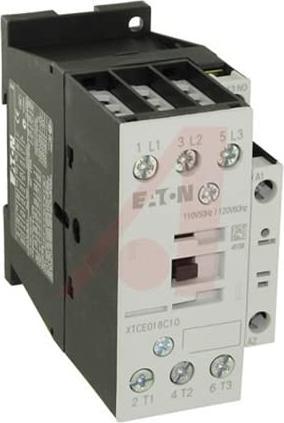

Eaton DILM17-10 24V50/60Hz 277008 Power contactor 3p+1S 7,5kW 400V AC3
More than 10 items ordered
Product details
The DILM17-10 power contactor from Eaton is a high-performance electrical switching device designed for use in industrial applications. With a rated power of 7.5 kW at 400 V AC3, it is ideal for controlling motors and other electrical loads. The contactor is designed for a coil voltage of 24 V and offers a high switching capacity of up to 18 A. It is suitable for both non-inductive and weakly inductive loads and can be directly controlled by a PLC. Installation is straightforward on a DIN rail or by screw mounting on the wall. With an IP20 protection rating, the device is suitable for use in protected environments. The DILM17-10 is a reliable choice for applications that require precise control and high switching performance.
- 3-pole design with 1 normally open contact
- Suitable for motors in efficiency class IE3
- Switching capacity for motors (AC3) and non-inductive loads (AC1)
- Input voltage of 24 V and output current of 18 A
- Mounting on DIN rail or by screw fastening.
Relay type | Power contactor |
input voltage | 24 V |
Output voltage | 24 V |
Electric current output | 18 A |
Output current type | AC |
Number of poles | 3x |
Item number | 22934532 |
Manufacturer | Eaton |
Category | Relays |
Manufacturer No. | DILM17-10(24V50/60HZ) |
Release date | 7.10.2022 |
Relay type | Power contactor |
input voltage | 24 V |
Output voltage | 24 V |
Electric current output | 18 A |
Output current type | AC |
Switching function | Normally open |
Number of closers | 1x |
Number of poles | 3x |
Max. Switching capacity | 7.50 kW |
Smart home | Not compatible |
Country of origin | China |
Manufacturer commitment | SBTi |
CO₂ emissions | 29,26 kg |
Climate contribution | EUR 0,74 |
Scope of delivery | 1 piece |
Length | 97 mm |
Width | 45 mm |
Height | 85 mm |
Weight | 450 g |
