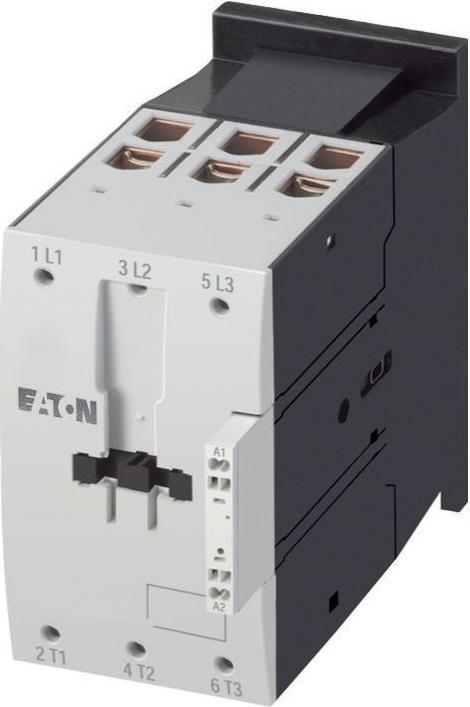

Contactor, application: Contactor for motors, contactors up to 170 A, 3-pole. Utilisation category: AC-1: Non-inductive or weakly inductive load, resistance furnaces; AC-3: Squirrel cage motors: Starting, switching off while running; AC-4: Squirrel cage motors: Starting, counter-current braking, reversing, inching. Connection technology: Spring-loaded terminals. Note: Also suitable for motors of efficiency class IE3; IE3-capable devices are labelled with the logo on the packaging.

Description: Spring-loaded terminals on the auxiliary and control cable connections, poles: 3-pole, rated operating current AC-3 380 V 400 V: Ie= 150 A, rated operating current AC-1 conventional thermal current, 3-pole, 50 - 60 Hz open at 40 °C: Ith = Ie= 190 A, encapsulated: Ith= 144 A, rated operational current AC-1 conventional thermal current 1-pole open: Ith= 400 A, encapsulated: Ith= 360 A. Max. rated operating power three-phase motors 50 - 60 Hz AC-3 220 V 230 V: P= 48 kW, 380 V 400 V: P= 75 kW, 660 V 690 V: P= 96 kW. Max. rated operating power three-phase motors 50 - 60 Hz AC-4 220 V 230 V: P= 20 kW, 380 V 400 V: P= 33 kW, 660 V 690 V: P= 48 kW. Can be combined with auxiliary switches: DILM150-XHIC(V), DILM1000-XHIC.

Notes: Switching elements according to EN 50012, auxiliary current and coil connections in spring-cage connection technology, main current connections with screw terminals, integrated protective circuit in the control electronics, AC/DC current type: DC actuation.
