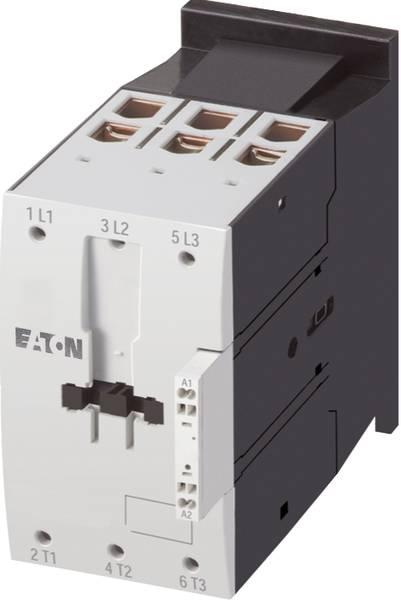

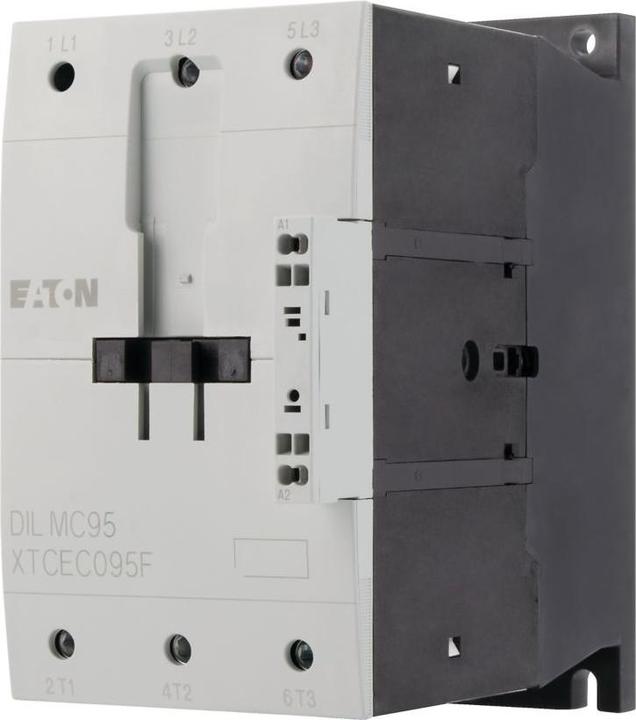

Contactor, application: Contactor for motors, contactors up to 170 A, 3-pole. Utilisation category: AC-1: Non-inductive or weakly inductive load, resistance furnaces; AC-3: Squirrel cage motors: Starting, switching off while running; AC-4: Squirrel cage motors: Starting, counter-current braking, reversing, inching. Connection technology: Spring-loaded terminals. Note: Also suitable for motors of efficiency class IE3; IE3-capable devices are labelled with the logo on the packaging.

Description: Spring-loaded terminals on the auxiliary and control cable connections, poles: 3-pole, rated operating current AC-3 380 V 400 V: Ie= 95 A, rated operating current AC-1 conventional thermal current, 3-pole, 50 - 60 Hz open at 40 °C: Ith = Ie= 130 A, encapsulated: Ith= 100 A, rated operational current AC-1 conventional thermal current 1-pole open: Ith= 275 A, encapsulated: Ith= 250 A.

Max. rated operating power three-phase motors 50 - 60 Hz AC-3 220 V 230 V: P= 30 kW, 380 V 400 V: P= 45 kW, 660 V 690 V: P= 75 kW. Max. rated operating power three-phase motors 50 - 60 Hz AC-4 220 V 230 V: P= 16 kW, 380 V 400 V: P= 26 kW, 660 V 690 V: P= 35 kW. Can be combined with auxiliary switch: DILM150-XHIC, DILM1000-XHIC.

Notes: Switching elements according to EN 50012, auxiliary current and coil connections with spring-cage connection technology, main current connections with screw terminals, current type AC/DC: AC actuation.
