−13%

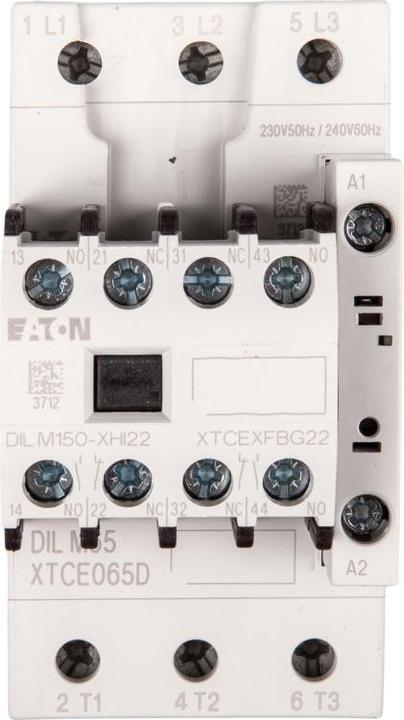

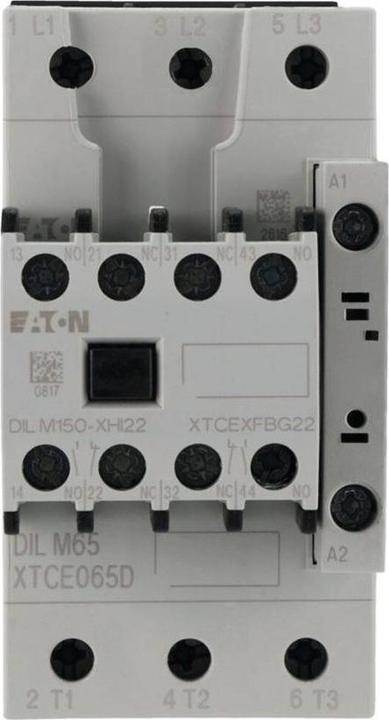

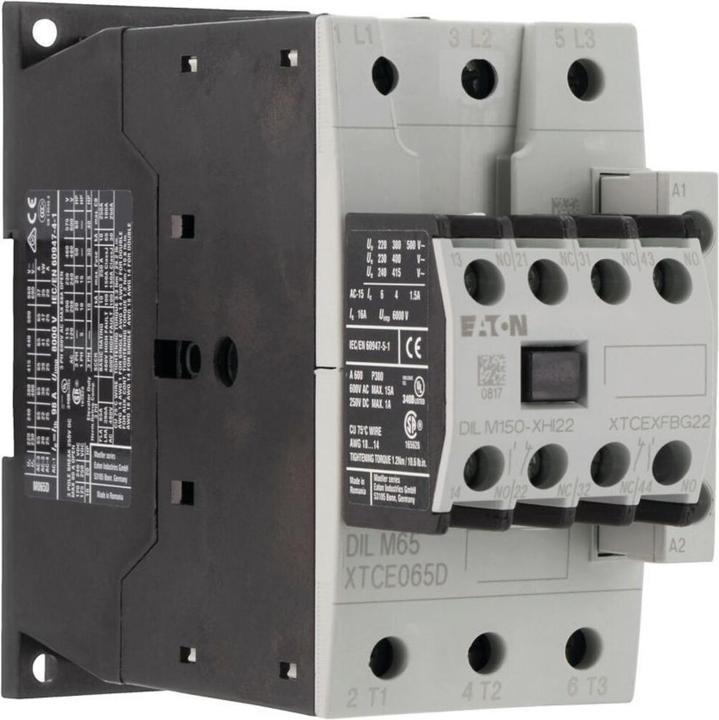

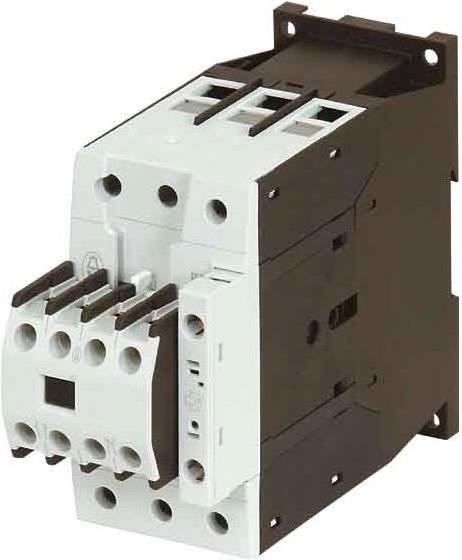

Eaton Electric GmbH Power contactor 30kW/400V AC DILM65-22 230V50HZ

Price in EUR including VAT
was EUR257,47
Ratings
BrandMore from Eaton
Delivered between Tue, 9.6. and Fri, 12.6.
More than 10 items ordered
free shipping

Product details

The Eaton DILM65-22 power contactor is a high-performance electrical switching device designed for use in industrial applications. With a rated power of 30 kW at 400 V AC, this device is ideal for controlling motors and other electrical loads. It offers high operational safety and reliability, making it a preferred choice for applications with high performance requirements. The contactor is equipped with a rated control supply voltage of 230 V at 50 Hz and can operate within a wide voltage range of 230 to 690 V. Its robust construction and the use of screw terminals ensure easy installation and maintenance. The DILM65-22 is suitable for various applications, including the control of squirrel-cage motors and other inductive loads. Its versatility and efficiency make it an essential component of modern electrical systems.

  • Suitable for motors in efficiency class IE3
  • Operating current of up to 98 A at AC-1
  • Supports various usage categories, including AC-3 and AC-4
  • Robust construction with screw terminals for easy installation
  • Two normally open and two normally closed auxiliary contacts for expanded control options.

Key specifications

Relay type
Power contactor
input voltage
230 V
Electric current output
65 A
Output current type
AC
Number of poles
3x

General information

Item number
20348437
Manufacturer
Eaton
Category
Relays
Manufacturer No.
277926
Release date
30.3.2022

Relay properties

Relay type
Power contactor
input voltage
230 V
Electric current output
65 A
Output current type
AC
Switching function
Normally open
Number of openers
2x
Number of closers
3x
Number of poles
3x
Max. Switching capacity
30 kW

Origin

Country of origin
China

Sustainability

Manufacturer commitment
SBTi

Voluntary climate contribution

CO₂ emissions
29,26 kg
Climate contribution
EUR 0,74

Scope of delivery

Scope of delivery
30kW/400V, AC, Power contactor

Product dimensions

Length
147 mm
Width
55 mm
Height
115 mm
Weight
1000 g
