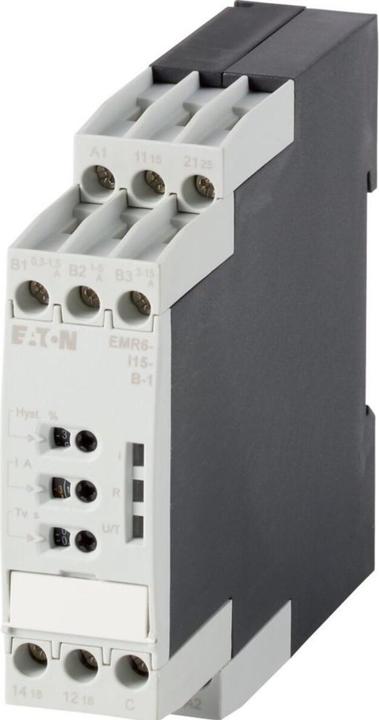

Eaton current monitor EMR6-I15-B-1

Manufacturer: Eaton
Designation: Current monitor
Voltage: 24-240VAC, 50/60Hz
Type: EMR6-I15-B-1
Electrical connection type: Screw connection
Removable terminals: No
1-phase undercurrent possible: Yes
3-phase undercurrent possible: No
1-phase overcurrent possible: Yes
3-phase overcurrent possible: No
1-phase window possible: No
3-phase window possible: No
DC voltage undercurrent function: Yes
DC voltage overcurrent function: Yes
DC current window function: No
Rated control supply voltage Us at AC 50 Hz: 220-240 V
Rated control supply voltage Us at AC 60 Hz: 220-240 V
Rated control supply voltage Us at DC: 220-240 V
Voltage type for actuation: AC/DC
Current measuring range: 0.3-15 A
Min. adjustable response delay time: 0.1 s
Max. permissible response delay time: 30 s
Min. adjustable off-delay time: 0 s
Max. permissible on-delay time: 0 s
Number of contacts as change-over contacts: 2
External current transformer: No
Width: 22.5 mm
Height: 85.6 mm
Depth: 103.7 mm

Further details:
Current monitor, range: Measuring and monitoring relay EMR, Monitoring of single-phase AC voltage systems, Response delay: none = 0 or adjustable from 0.1 to 30 s, Measuring range extension possible with current transformers, Monitoring of: Overcurrent, Undercurrent, Current measuring range: I~/I= 0.3 - 1.5 A, 1 - 5 A, 3 - 15 A, Supply voltage: 220 - 240 V AC, 50/60 Hz, Mounting position: As required, Mounting: Snap-on mounting DIN rail IEC/EN 60715, Width: 22.5 mm, Standards and regulations: UL 508, CAN/CSA C22.2 No.14, GL, EAC, CCC, RMRS, EAN: 4015081787913.
