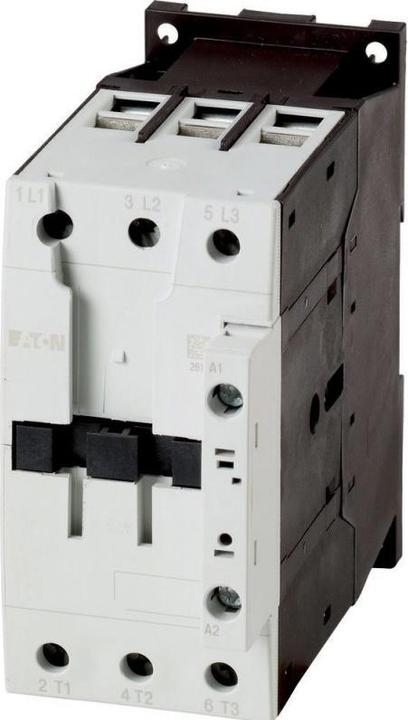

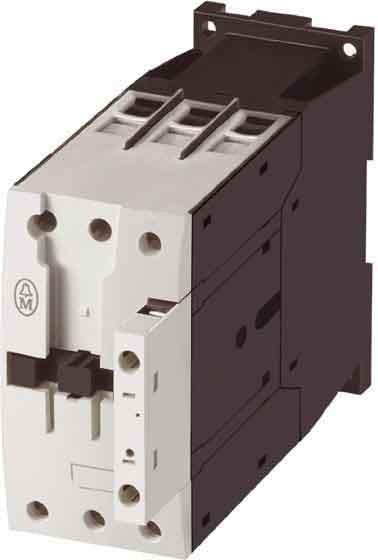

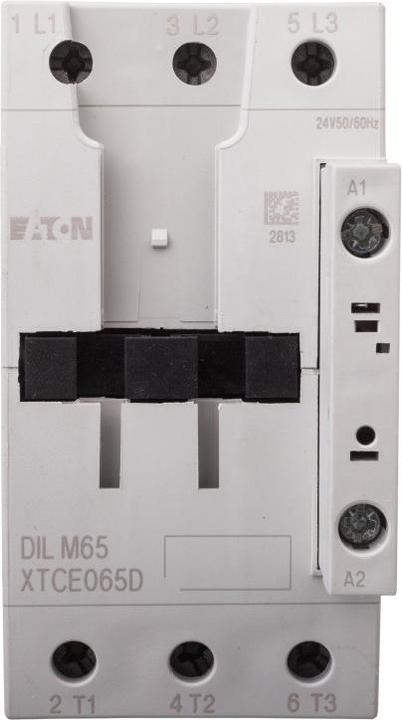

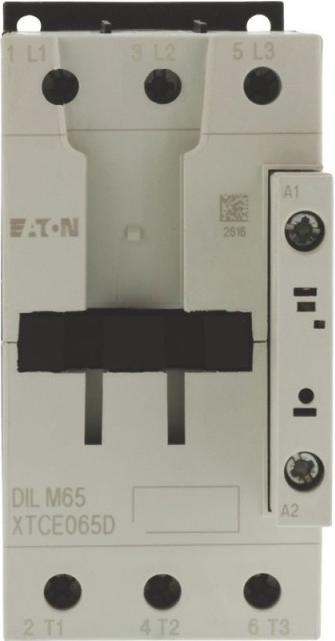

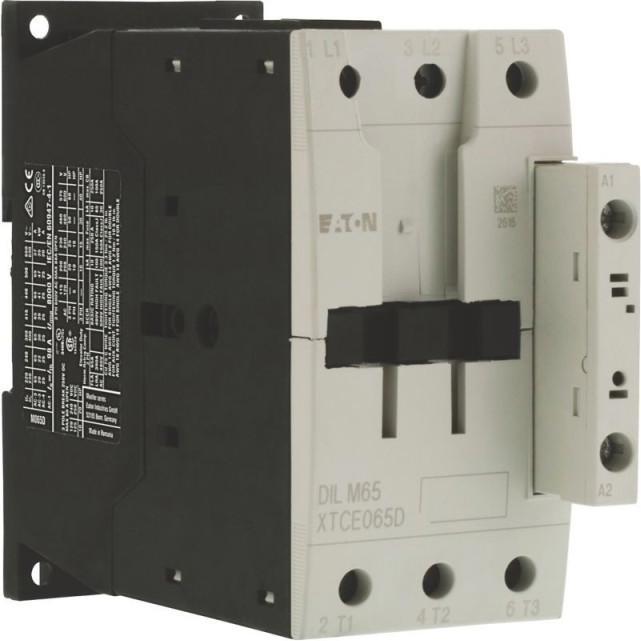

Eaton power contactor DILM65 (24V 50/60Hz)
Manufacturer: Eaton
Designation: Power contactor
Type: DILM65 (24V 50/60Hz)
Rated control supply voltage Us at AC 50 Hz: 24 V
Rated control supply voltage Us at AC 60 Hz: 24 V
Rated control supply voltage Us at DC: 0 V
Voltage type for actuation: AC
Rated operational current Ie at AC-1, 400 V: 98 A
Rated operational current Ie at AC-3, 400 V: 65 A
Rated operational power at AC-3, 400 V: 30 kW
Rated operational current Ie at AC-4, 400 V: 25 A
Rated operational power at AC-4, 400 V: 12 kW
Rated operational power NEMA: 37 kW
Suitable for series mounting: No
Connection type main circuit: Screw connection
Number of NO contacts as main contacts: 3

Further details:
Power contactor for motors, power contactors up to 170 A, 3-pole.
Utilisation category:

• AC-1: Non-inductive or low inductive load, resistance furnaces
• AC-3: Squirrel cage motors: Starting, switching off during running
• AC-4: Squirrel-cage motors: Starting, countercurrent braking, reversing, jogging

Connection method: Screw terminals
Note: Also suitable for motors of efficiency class IE3
Poles: 3-pole
Rated operational current AC-3 380 V 400 V: Ie = 65 A
Rated operational current AC-1 conventional thermal current, 3-pole, 50 - 60 Hz open at 40 °C: Ith = Ie = 98 A, enclosed: Ith = 72 A
Rated operational current AC-1 conventional thermal current 1-pole open: Ith = 200 A, enclosed: Ith = 180 A
Max. rated operational power three-phase motors 50 - 60 Hz AC-3:

• 220 V 230 V: P = 20 kW
• 380 V 400 V: P = 30 kW
• 660 V 690 V: P = 35 kW

Max. rated operational power three-phase motors 50 - 60 Hz AC-4:

• 220 V 230 V: P = 7 kW
• 380 V 400 V: P = 12 kW
• 660 V 690 V: P = 17 kW

Can be combined with auxiliary contacts: DILM150-XHI(V), DILM1000-XHI(V)
Notes: Switching elements according to EN 50012
Type of current: AC/DC: AC actuation
EAN: 4015082778989.
