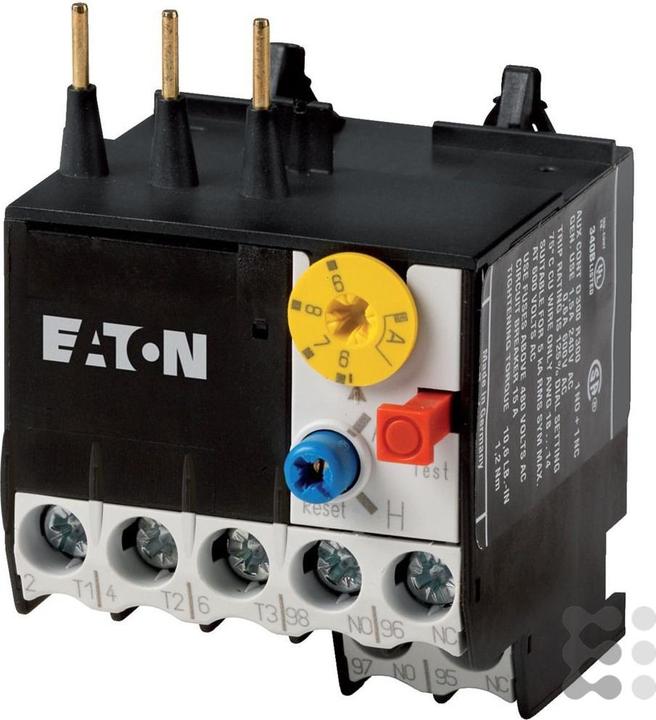

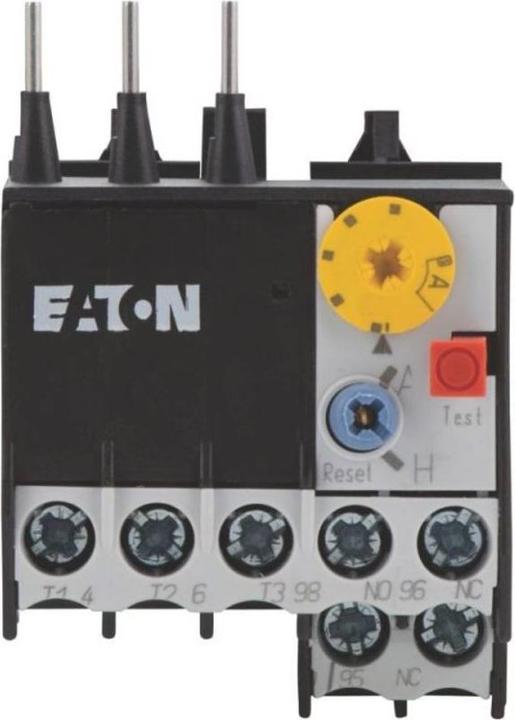

The Eaton overload relay ZE-2.4 is a compact and reliable motor protection relay specifically designed for direct mounting on small contactors. With an adjustable current range of 1.6 to 2.4 amperes, it provides effective protection against overloads and phase failures. The intuitive operation is facilitated by a rotary dial for current adjustment, while additional features such as a test/off button and a reset button for manual and automatic operation enhance user-friendliness. The device is certified according to the standards IEC/EN 60947 and VDE 0660 and has an IP20 protection rating, making it suitable for use in various industrial applications. With an auxiliary switch that includes one normally closed and one normally open contact, the overload relay is versatile and ensures safe and efficient motor control.

• Adjustable current range from 1.6 to 2.4 A
• Direct mounting on small contactors
• Includes auxiliary switch with 1 normally closed and 1 normally open contact
• Test/off button and reset button for manual/automatic operation
• Certified according to IEC/EN 60947 and VDE 0660.
