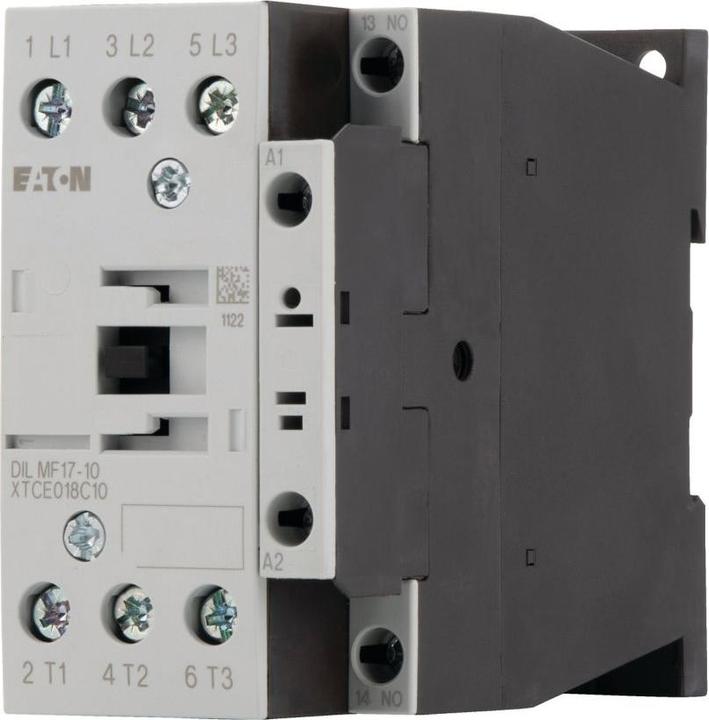

Power contactor for the semiconductor industry according to SEMI F47. This power contactor supports up to 150 A with electronic drive. Utilisation categories include AC-1 for non-inductive or weakly inductive loads and resistance furnaces, AC-3 for squirrel cage motors (starting and switching off while running), and AC-4 for squirrel cage motors (starting, counter-current braking, reversing, inching).

Connection technology features screw terminals. It is also suitable for motors of efficiency class IE3, with IE3-capable devices labelled accordingly.

Description: Contactors are suitable for the semiconductor industry according to SEMI F47. They are ripple-free and suitable for building automation. The actuator can be used at frequencies from 50 Hz to 400 Hz.

Specifications include:

• Poles: 3-pole
• Rated operating current AC-3 at 380 V/400 V: Ie = 18 A
• Rated operating current AC-1 conventional thermal current (3-pole, 50 - 60 Hz open at 40 °C): Ith = Ie = 40 A
• Encapsulated: Ith = 32 A
• Rated operating current AC-1 conventional thermal current (1-pole open): Ith = 88 A, encapsulated: Ith = 80 A
• Maximum rated operating power for three-phase motors (50 - 60 Hz AC-3):
• 220 V/230 V: P = 5 kW
• 380 V/400 V: P = 7.5 kW
• 660 V/690 V: P = 11 kW
• Maximum rated operating power for three-phase motors (50 - 60 Hz AC-4):
• 220 V/230 V: P = 2.5 kW
• 380 V/400 V: P = 4.5 kW
• 660 V/690 V: P = 6.5 kW

Contact configuration: S = NO contact: 1 S. Notes: Switching elements according to EN 50012, integrated protective circuit.
