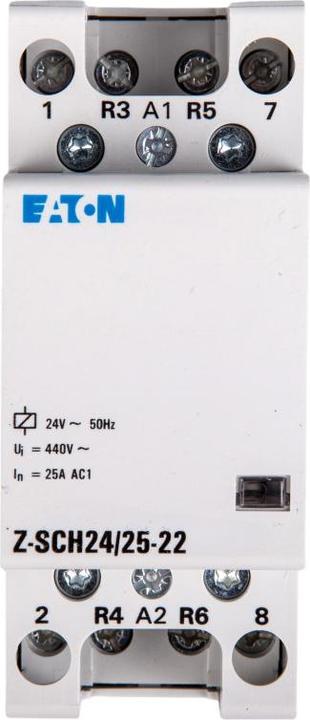

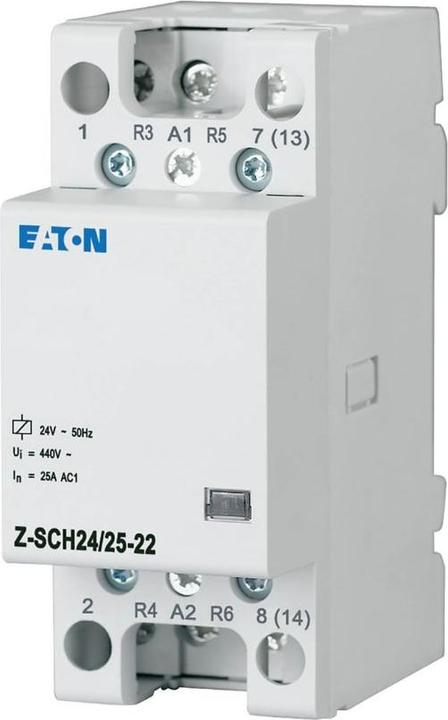

Eaton Z-SCH24/25-22 Installation contactor 24VAC 2S+2Ö 25A 248850

Price in EUR including VAT
Ratings
BrandMore from Eaton
Delivered between Tue, 9.6. and Thu, 11.6.
More than 10 pieces in stock at supplier
free shipping

Product details

The Z-SCH24/25-22 installation relay from Eaton is a reliable electrical component designed for controlling electrical loads in various applications. With a rated voltage of 24 V AC and a maximum switching current of 25 A, this installation relay offers a robust solution for automation technology. It features two normally open contacts and two normally closed contacts, allowing for flexible control options. The relay complies with the relevant standards according to IEC and VDE, underscoring its safety and reliability. Installation is straightforward on a DIN rail, making it easy to set up in control cabinets. With compact dimensions and a thoughtful design, the Z-SCH24/25-22 is an ideal choice for professional applications in electrical engineering.

  • Rated voltage of 24 V AC for versatile applications
  • Maximum switching current of 25 A for high power requirements
  • Two normally open contacts and two normally closed contacts for flexible control options
  • Easy DIN rail mounting for a hassle-free installation.

Key specifications

Relay type
Installation contactor
input voltage
24 V
Output voltage
24 V
Electric current output
25 A
Output current type
AC/DC
Number of poles
2x

General information

Item number
14163923
Manufacturer
Eaton
Category
Relays
Manufacturer No.
248850
Release date
10.11.2020

Relay properties

Relay type
Installation contactor
input voltage
24 V
Output voltage
24 V
Electric current output
25 A
Output current type
AC/DC
Resistor
2500 Ω
Switching function
Normally open, Opener
Number of openers
2x
Number of closers
2x
Number of poles
2x
Max. Switching capacity
3 kW

Smart home features

Smart home
Not compatible

Origin

Country of origin
China

Sustainability

Manufacturer commitment
SBTi

Voluntary climate contribution

CO₂ emissions
29,26 kg
Climate contribution
EUR 0,74

Scope of delivery

Scope of delivery
1 pcs.

Product dimensions

Length
60 mm
Width
35 mm
Height
87.50 mm
