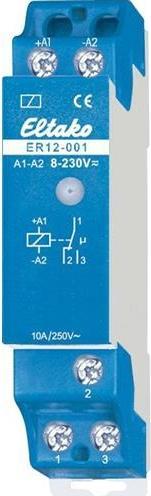

Eltako ER12-001-UC

Price in EUR including VAT
Delivered the day after tomorrow
Only 1 piece in stock
free shipping

Product details

Wechsler potential-free 16A 250V AC, 230V LED lamps up to 200W, incandescent lamps 2000W. No standby loss. Rail-mounted device for installation on DIN-EN60715 TH35 mounting rails. Division unit 18mm wide, 58mm deep. State-of-the-art hybrid technology combines the advantages of wear-free electronic control with the high performance of special relays. Universal control voltage 8..230V UC. Low switching noise. Control indication with LED. Integrated freewheeling suppression diode A1=, A2= -. Safe isolation according to VDE 0106, part 101, therefore also usable as a coupling relay. By using a bistable relay, there is no coil loss and no heating even when switched on. The relay contact can be open or closed during commissioning and will synchronize on the first actuation. This relay is not suitable for feedback with the switching voltage of a dimmer switch. For this purpose, only the relays ESR12DDX-UC, ESR12NP-230VUC, or ESR61NP-230VUC should be used. The electronics have no independent power supply and therefore no standby loss. Only when the control contact is closed is the microcontroller activated, which switches the bistable relay in the correct direction. When the control contact is opened or the control voltage drops, it switches back. ER12-001-UC.

Key specifications

input voltage
230 V
Scope of delivery
250V 22001601Switching and control relay UC. 1 changeover contact, potential-free 16A
Output voltage
250 V
Output current type
AC/DC
Electric current output
16 A
Relay type
Installation relay
Item number
14528253

General information

Manufacturer
Eltako
Category
Relays
Manufacturer no.
22001601
Release date
29.12.2020
Sales rank in Category Relays
2 of 21333
External links

Relay properties

Relay type
Installation relay
input voltage
230 V
Output voltage
250 V
Electric current output
16 A
Output current type
AC/DC
Switching function
Normally open
Number of openers
1 x
Number of closers
1 x
Number of poles
1 x
Max. Switching capacity
2 kW
Manufacturer Type
Er12-001-uc

Smart home features

Smart Home
Not compatible
Radio frequency
50 Hz

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
250V 22001601Switching and control relay UC. 1 changeover contact, potential-free 16A

Product dimensions

Length
240 mm
Width
1000 mm
Height
80 mm
Weight
80 g

Package dimensions

Length
9 cm
Width
7 cm
Height
2.30 cm
Weight
70 g
