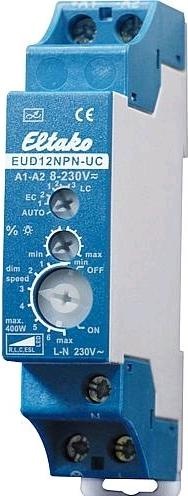

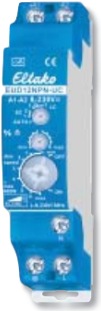

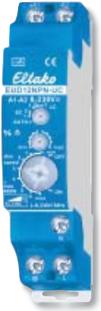

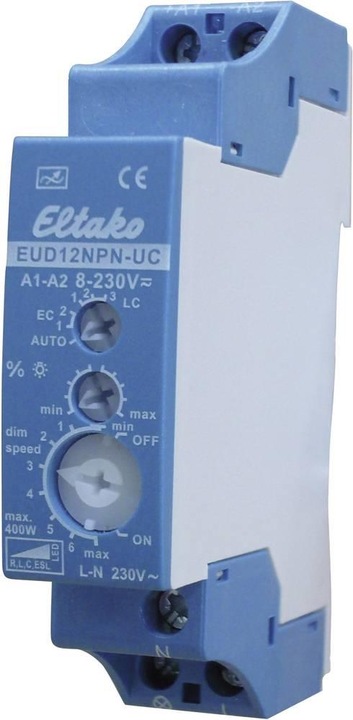

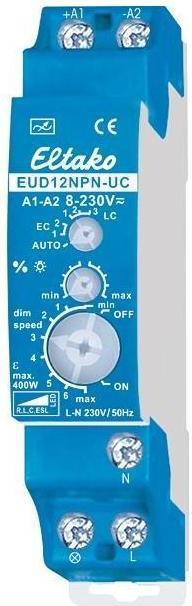

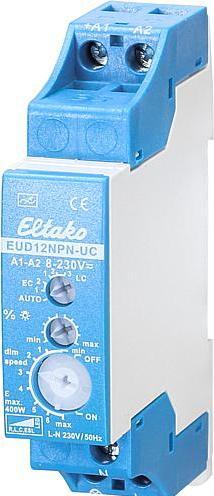

Eltako Eud12npn-Uc

Price in EUR including VAT
Delivered between Wed, 27.8. and Thu, 28.8.
10 pieces in stock at third-party supplier
Supplied by
free shipping

Product details

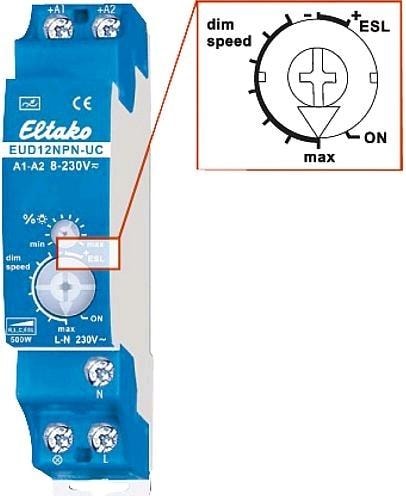

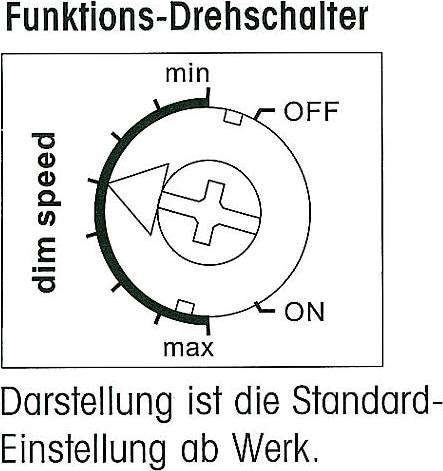

Universal dimmer switch with automatic lamp detection. Standby loss is only 0.1 watts. Minimum or maximum brightness and dimming speed are adjustable. Equipped with children's room and snooze functions. The dimmer switch is dependent on ventilation conditions and supports dimmable energy-saving lamps (ESL) as well as dimmable 230V LED lamps, depending on the lamp electronics. Switching occurs at zero crossing with soft start and soft off to protect the lamp. There is a universal control voltage that is galvanically isolated from the supply and switching voltage. No minimum load is required. Short control commands turn the light on or off, while a continuous signal adjusts the brightness to the maximum value. Interrupting the control signal changes the dimming direction. The set brightness level is saved when turned off (memory). In the event of a power failure, the switching position and brightness level are saved and can be turned on again when the supply voltage returns. From 110V control voltage, the glow lamp current is 5mA. An automatic electronic overload protection and over-temperature shut-off are also included.

Key specifications

input voltage
230 V
Scope of delivery
Impulse dimmer switch 8..230V UC
Output voltage
230 V
Output current type
AC/DC
Item number
8415421

General information

Manufacturer
Eltako
Category
Relays
Manufacturer no.
EUD12NPN-UC
Release date
20.4.2018
External links

Relay properties

input voltage
230 V
Output voltage
230 V
Output current type
AC/DC
Max. Switching capacity
0.40 kW
Manufacturer Type
Eud12npn-uc

Smart home features

Smart Home
Not compatible
Smart home ecosystem
Apple Home
Radio frequency
50 Hz

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Impulse dimmer switch 8..230V UC

Product dimensions

Length
82 mm
Width
18 mm
Height
58 mm
Weight
150 g

Package dimensions

Length
9.40 cm
Width
6.50 cm
Height
2.50 cm
Weight
76 g
