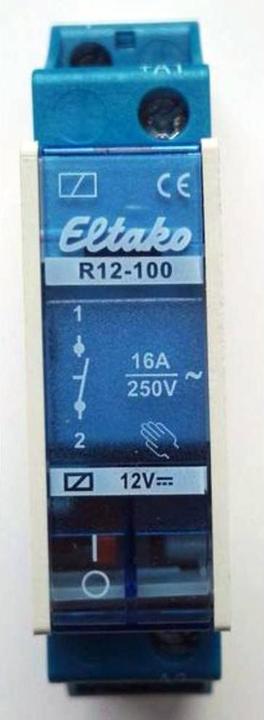

Eltako Switching relay R12-100-12V DC
Price in EUR including VAT
Free shipping starting at 30,–
Eltako Switching Relay for Rail-Mounted Installation R12-100-12VDC
Manufacturer: Eltako
Designation: Switching Relay for Rail-Mounted Installation 1S 16A
Type: R12-100-12VDC
Function: Other
Mounting Type: DIN Rail
Width in Division Units: 1
Installation Depth: 55 mm
Number of Contacts as Normally Open: 1
Control Voltage: 12 V
Control Voltage Type: DC
Frequency of Control Voltage: 50 Hz
Rated Current: 16 A
Supply Voltage: 230 V
Supply Voltage Type: AC
Max. Incandescent Load: 2300 W
Max. Fluorescent Load: 2300 VA
Max. Fluorescent Load (Duo Circuit): 2300 VA
Max. Fluorescent Load (Parallel Compensated): 500 VA
Max. Switching Current (cos phi 0.6): 10 A
Additional Details: 1-pole 16A/250V AC. Rail-mounted devices for installation on mounting rail DIN-EN 60715 TH35 with manual operation and switching position indication. 1 division unit = 18 mm wide, 55 mm deep. Duty cycle 100%. Control power requirement 1.9 W. Contacts: 1 Normally Open. Contact gap: 3 mm. Test voltage contact/contact: 2000 V and test voltage control connections/contact: 4000 V. The compatible electronic switching relays ER12DX-UC, ER12-200-UC, and ER12-110-UC can also be used. The universal control voltage UC covers the voltage range of 12-230 V AC 50-60 Hz and 12-230 V DC. EAN: 4010312200995.
input voltage | 12 V |
Scope of delivery | Switching relay for series EB 1S 16A R12-100-12VDC |
Output voltage | 12 V |
Output current type | DC |
Electric current output | 16 A |
Relay type | Switching relay |
Item number | 20020866 |
Manufacturer | Eltako |
Category | Relays |
Manufacturer no. | 22100054 |
Release date | 3.5.2021 |
External links |
Relay type | Switching relay |
input voltage | 12 V |
Output voltage | 12 V |
Electric current output | 16 A |
Output current type | DC |
Switching function | Normally open |
Number of openers | 1 x |
Number of closers | 1 x |
Number of poles | 1 x |
Number of switching cycles | 1 x |
Max. Switching capacity | 2.30 kW |
Manufacturer Type | R12-100-12vdc |
Smart Home | Not compatible |
Radio frequency | 50 Hz |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Switching relay for series EB 1S 16A R12-100-12VDC |
Length | 55 mm |
Width | 18 mm |
Height | 55 mm |
Length | 14.40 cm |
Width | 10.40 cm |
Height | 3.70 cm |
Weight | 99 g |
