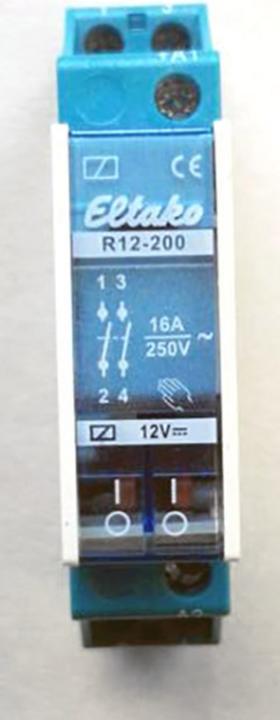

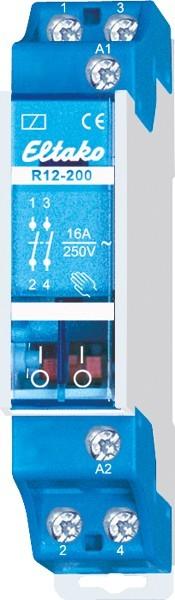

This is a modular device designed for mounting on a mounting rail according to DIN EN 60715 TH35. It features manual operation and a switching position indicator. The division unit is 18 mm wide and 55 mm deep. The duty cycle is 100%, and the control power requirement is 1.9 W. The following contacts are available: 1 normally closed contact, 2 normally closed contacts, 1 normally closed contact and 1 normally open contact, as well as 2 normally open contacts (rest current relay, only 230 V). The contact gap is 3 mm, the test voltage from contact to contact is 2000 V, and from control terminal to contact is 4000 V.
input voltage | 12 V |
Scope of delivery | 250V, Switching relay 12V DC 2 S 16A |
Output voltage | 12 V |
Output current type | DC |
Electric current output | 16 A |
Relay type | Switching relay |
Item number | 20024498 |
Manufacturer | Eltako |
Category | Relays |
Manufacturer no. | 22200054 |
Release date | 16.3.2022 |
Sales rank in Category Relays | 20 of 21331 |
External links |
Relay type | Switching relay |
input voltage | 12 V |
Output voltage | 12 V |
Electric current output | 16 A |
Output current type | DC |
Switching function | Normally open |
Number of openers | 2 x |
Number of closers | 2 x |
Number of poles | 2 x |
Max. Switching capacity | 2.30 kW |
Manufacturer Type | R12-200-12v dc |
Smart Home | Not compatible |
Radio frequency | 50 Hz |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 250V, Switching relay 12V DC 2 S 16A |
Length | 55 mm |
Width | 18 mm |
Height | 55 mm |
Length | 8.30 cm |
Width | 6 cm |
Height | 1.80 cm |
Weight | 100 g |
