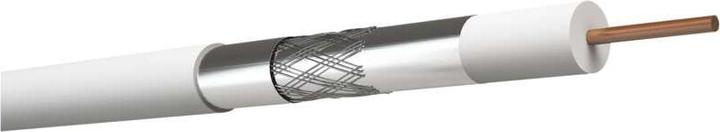

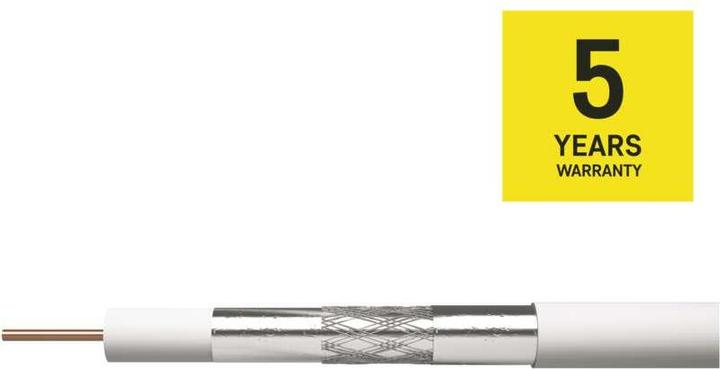

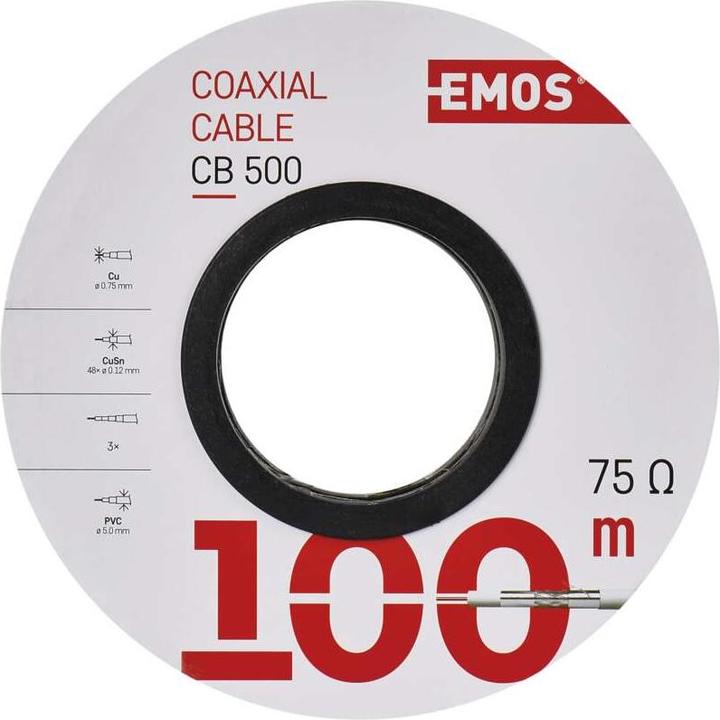

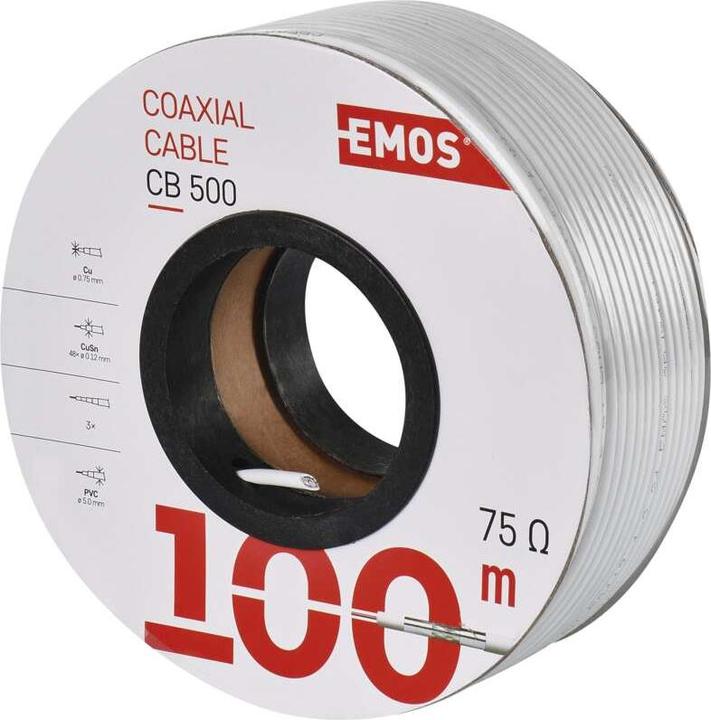

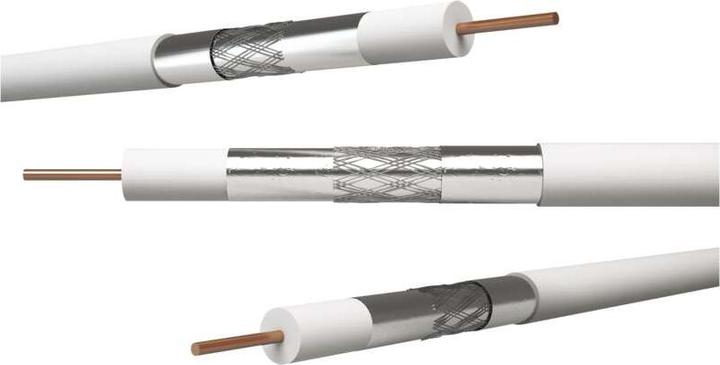

Emos Coaxial cable CB500, 100m

Antenna cable
Price in EUR including VAT, free shipping
Ratings
BrandMore from Emos
Delivered between Wed, 25.6. and Sat, 28.6.
More than 10 items in stock at supplier

Product details

Type of coaxial cable: CB500, Impedance: 75 Ohm, Usage: CATV cabling, Material of inner conductor: Copper (Cu), Diameter of inner conductor: 0.75 mm, Dielectric type, average: FPE 3.2 mm, Number of shields: 3, Shielding I. foil: 1× Al/PES, Material of shielding: tinned copper (CuSn), Number of wires in shielding: 48× 0.12 mm, Diameter of shielding: 48× 0.12 mm², Shield coverage: 47%, Shielding II. foil: Al/PES, Diameter of cable sheath: 5 mm, Material of cable sheath: PVC, Color of cable sheath: white, Capacitance (pF/m): 53, Velocity factor: 0.85, Max. attenuation at 20 °C (dB/100m) 10 MHz: 4.5, Max. attenuation at 20 °C (dB/100m) 100 MHz: 10.5, Max. attenuation at 20 °C (dB/100m) 450 MHz: 20.2, Max. attenuation at 20 °C (dB/100m) 650 MHz: 24.1, Max. attenuation at 20 °C (dB/100m) 860 MHz: 28, Max. attenuation at 20 °C (dB/100m) 1,000 MHz: 29.1, Min. reflection loss at 20 °C (dB) 300–600 MHz: 20, Min. reflection loss at 20 °C (dB) 600–900 MHz: 18, Min. dusk loss (dB) 10 ~ 800 MHz: 75, Max. DC resistance at 20 °C (Ohm/km) - inner core: 41.5, Max. DC resistance at 20 °C (Ohm/km) - outer core: 48.5, Insulation resistance between cores at 20 °C (MOhm/km): 1,000, Min. bending radius single/multiple: 25/50 mm, Weight (kg/km): 26.5, Min. reflection loss at 20 °C (dB) 10–300 MHz: 25, Storage temperature: -20 °C to +75 °C, Installation temperature: +5 °C to +60 °C, Packaging - Length: 100 m, Packaging - Type of reel: paper reel, Packaging - Description of footage, Recommended connector types - F-connectors Quickfix (plugged): *K7200, Recommended connector types - F-connectors screwed: *K7321, FPE = foam dielectric, Fire behavior class: Eca, Hazardous substances: none, Sales packaging: 100 m, reel, Warranty period: 5 years.

Key specifications

Length
100 m
Documents
Declaration of conformity.pdf
Item number
43038421

General information

Manufacturer
Emos
Category
Antenna + Satellite cables
Release date
20.2.2024

Colour

Cable colour
White

Material

Material
PVC

Coaxial cable properties

Coaxial cable type
Antenna cable
Number of shieldings
3
Length
100 m
Inner conductor Material
Copper

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 pcs.

14-day cancellation right
30-day right of return
24 Months statutory warranty
