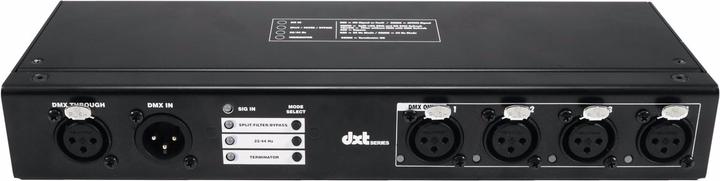

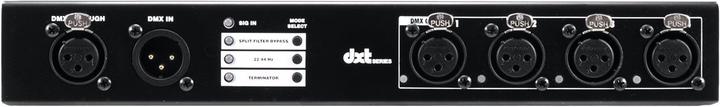

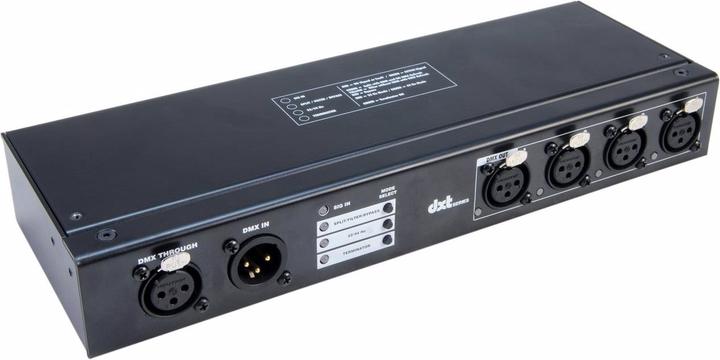

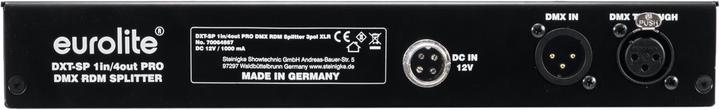

The DXT-SP 1in/4out PRO DMX RDM Splitter from Eurolite is a highly advanced DMX splitter specifically designed to distribute a DMX input signal to four DMX outputs. With its RDM capability, it enables bidirectional communication over the DMX line, making it an ideal solution for professional lighting controls. The splitter offers a variety of connection options, including two DMX inputs and two DMX loop-through outputs, available on both the front and back. The galvanically isolated outputs ensure reliable signal transmission and minimize interference. Additionally, the splitter features a switchable filter mode that can filter out RDM data to avoid issues with devices that do not support RDM. With the ability to connect up to 32 DMX devices to each output and a selectable output frequency, this splitter is a flexible and powerful solution for any lighting control application.

• RDM capable for bidirectional communication
• Switchable filter mode to avoid RDM issues
• Galvanically isolated outputs with independent drivers
• Selectable output frequency of 22/44 Hz
• DMX failure mode selectable: Hold, Blackout, Null.
