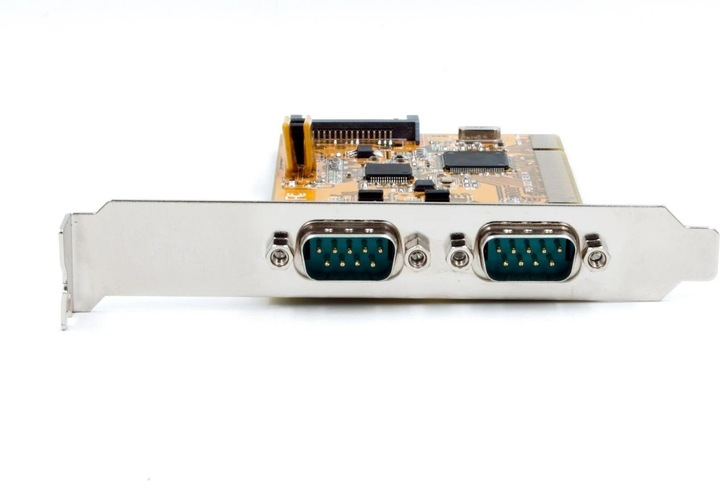

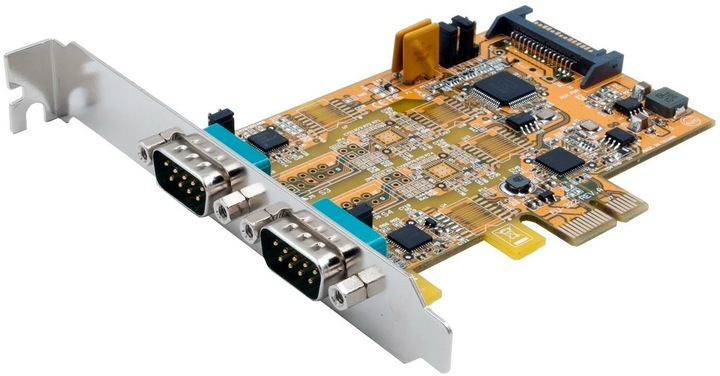

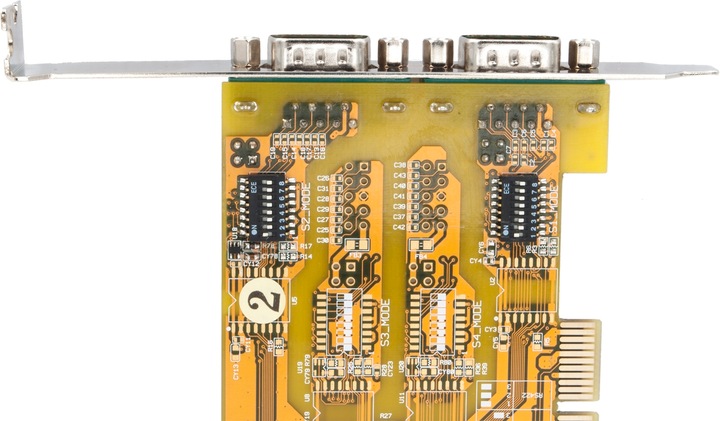

The EX-45032 PCI I/O card provides two serial RS-232, 422, and 485 high-performance UART 16C550 outputs. It is designed to expand two additional serial ports for PCs, workstations, or servers via the PCI or PCI-X bus. +5V and +12V can be configured on pin 9 of the serial connector as a POS system (Power over System). The card is fully Plug-and-Play compatible. It supports ATTA Auto RS-485 transmitter features. The transmission type (RS-232, 422, or 485) can be individually set for each port.

Interface: RS-232 V.24 / RS-422 / RS-485
±15kV IEC1000-4-2 ESD protection for RS232 I/O
FIFO buffer 16C550 with 16 bytes
I/O addresses and interrupts are assigned by the operating system
Data bits: 7 and 8 / Stop bits: 1, 1.5, 2
Parity: none, even, odd, space, and mark
Supports ATTA Auto Transmitter
Termination RS-422/485 - 120 Ohm can be enabled or disabled

Signals:
RS-232 - TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422 - 4 wire (TxD+/-, RxD+/-) Full duplex
RS-485 - 4 wire (TxD+/-, RxD+/-) Full duplex
RS-485 - 2 wire (Data+/-, Data+/-) Half duplex

Chipset: FTDI

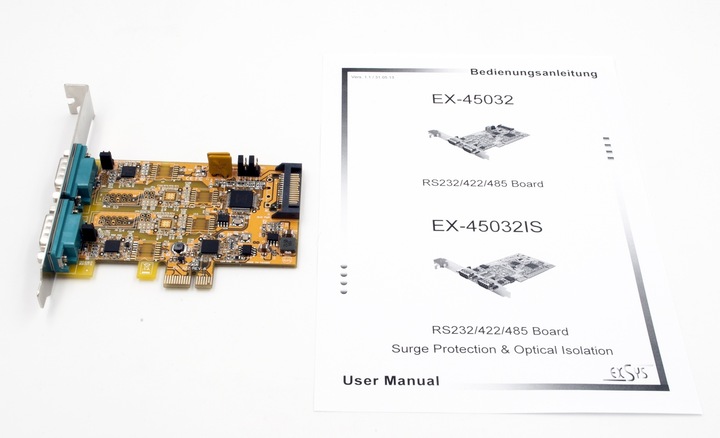

Package contents:
EX-45032, driver CD, manual.
