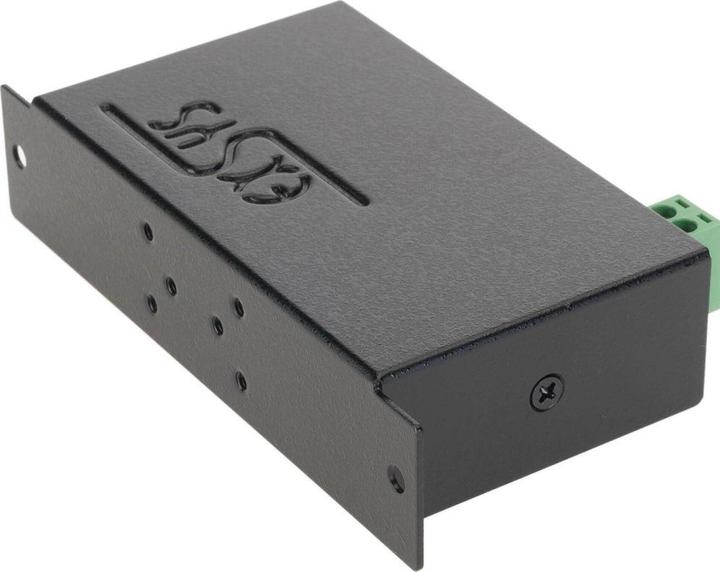

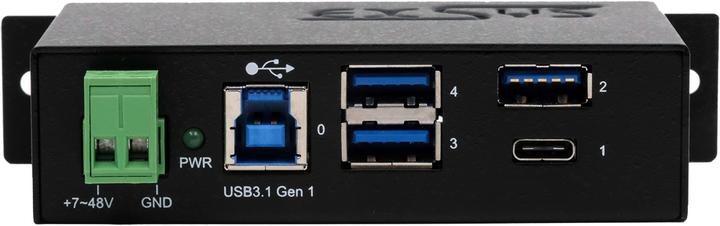

The EX-1194HMS is a USB 3.2 Gen 1 metal hub that complies with the specifications of the Universal Serial Bus (USB) Revision 3.2 Gen 1 and operates at a data speed of up to 5 Gbps. It features one USB-B upstream port and four downstream ports, including one USB-C and three USB-A connections. The EX-1194HMS supports 15 kV ESD surge protection for each port. Port 1 is equipped with a USB-C socket, allowing up to four external USB peripherals to be connected to a USB 3.2 Gen 1 port from the computer in a 19" rack. The hub meets the specific requirements of industrial applications.

USB 3.2 Gen 1 metal hub with one USB-C and three USB-A downstream ports
15 kV ESD surge protection for each output
Power supply from +7 V to +48 V DC via terminal block
Automatic detection of input polarity at the power terminal block
Power supply optionally also from the USB bus with +5 V (bus power)
900 mA power on all four ports (self power)
Fast USB battery charging with CDP and DCP mode

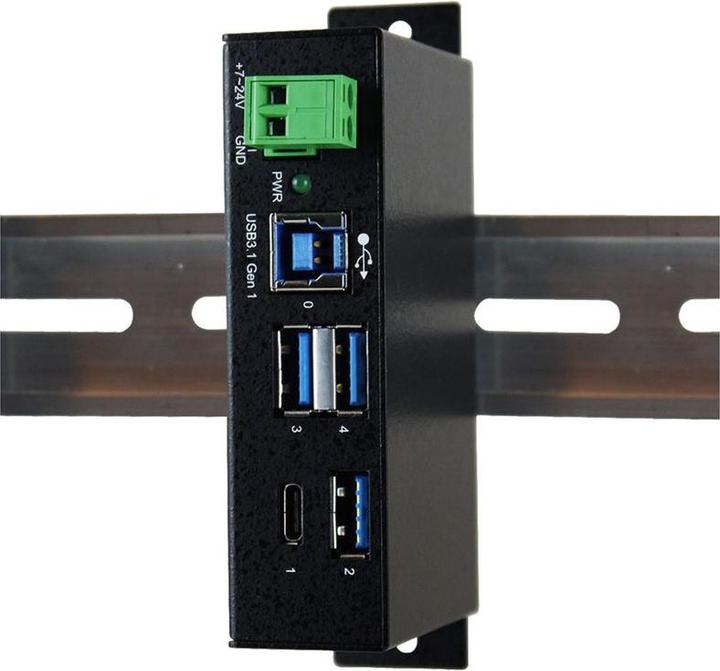

Easy installation with integrated DIN rail mounting bracket
Supports all USB 1.1 to 3.2 Gen 1 compatible peripherals
Compact industrial design with a robust metal housing
LED voltage display

Internal jumper for individual power control:

• ENA = Bus power operation possible
• DIS = Operation only with power supply possible (self power)

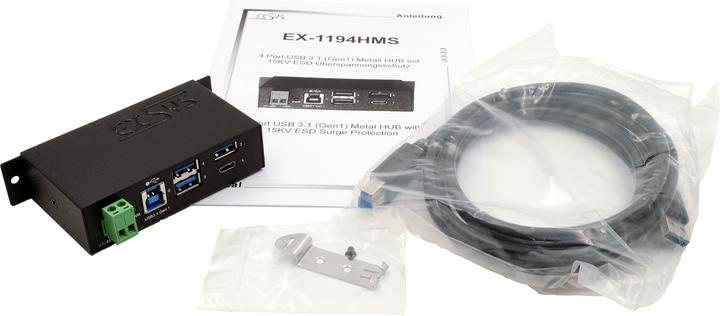

Included in delivery:

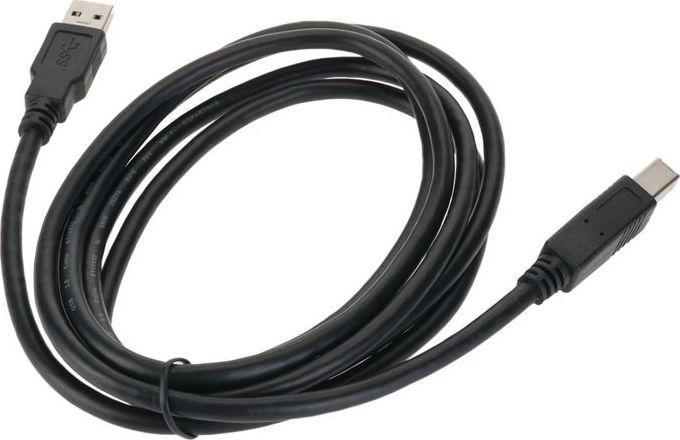

EX-1194HMS, USB 3.2 Gen 1 cable 1.5 m, DIN rail kit, manual.
