Manufacturer Series: VUVG
Mounting Type: Distributor
Function: 5/3 Normally Closed
Connection Thread: M5, M7
Actuation Type: Electric
Housing Material: Aluminum Alloy
Maximum Flow Rate: 260 l/min
Solenoid Voltage: 24 V dc
Solenoid Power Consumption: 0.4 W, 1 W
Minimum Operating Pressure: -0.9 (External) bar, 3 (Internal) bar
Minimum Operating Temperature: -5 °C
Maximum Operating Temperature: +60 °C
Configuration: Normally Open

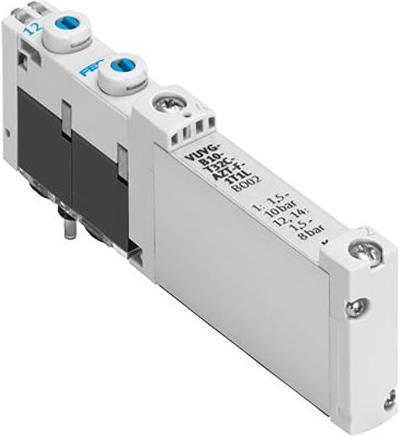

The VUVG series solenoid valves feature a compact design that is ideal for applications where space, weight, flow rate, and installation are critical. These solenoid valves offer a high flow rate and are small in size, enabling the operation of more applications using a single valve type. The valves provide up to 100% more flow and higher energy density due to a pressure capacity of up to 10 bar. They deliver faster, more flexible, and cost-effective performance for your systems.

Features and Benefits:

• Compact design that saves space and time
• Pressure range of -0.9 to 10 bar for maximum energy density and increased performance
• High flow rates and short cycle times
• Long service life that reduces downtime
• Protection class: IP 40/IP 65
• Integrated LED for quick status checks
• No overlap between air channels
• Fast and easy installation and maintenance
• Secured fastening screws and form-fit seals
• Variety of variants available for your system

Application Area:
Suitable for use in many industries such as electronics, packaging, printing, textiles, and small parts assembly.
