Housing material: Polycarbonate
Dimensions outside: 130 x 80 x 35 mm
Length outside: 130 mm
Outside width: 80 mm
External height: 35 mm
IP protection class: IP66, IP67
Colour: Grey, smoke grey transparent
Lid colour: Smoked glass, transparent
Series: MNX
Shielded: No

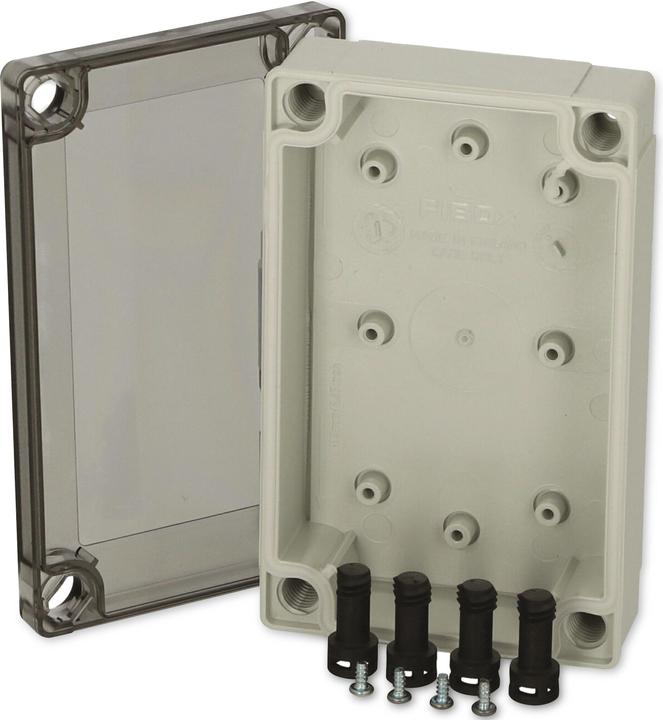

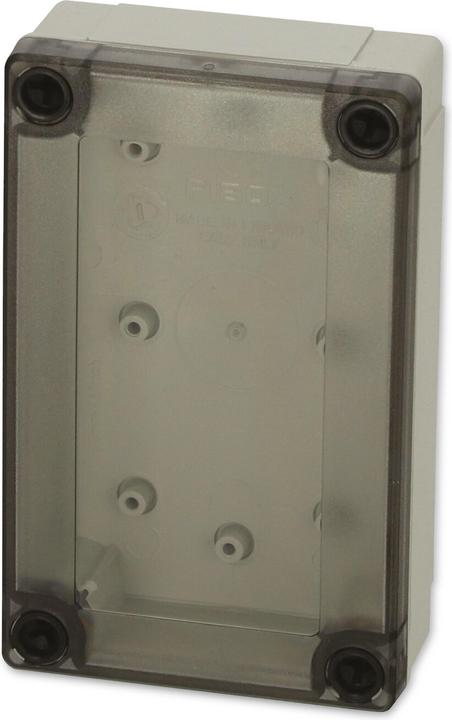

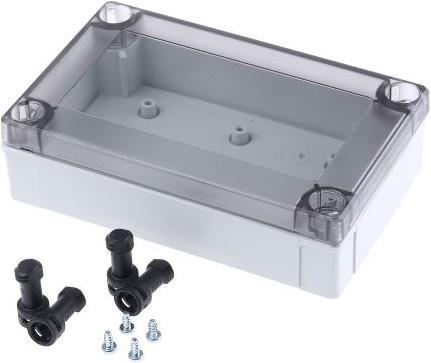

Boxes are optionally available in two basic heights. Those where the total height ends with a "5" have a basic height of 25 mm. All others have a basic height of 50 mm. MNX housing enclosures are light grey (RAL7035), with a flammability rating of UL94-V2. The temperature range of the housing material is -40 to +120 °C (up to +80 °C for continuous operation). This housing is designed for electronic systems and components. The unique arrangement of mounting sockets allows for three separate mounting options, including preformed guides for quick PCB installation. There is a recess in the center of the cover for the insertion of membrane keypads. It offers good chemical resistance and an IP67 rating. Choose between light grey or smoke grey transparent covers. Chassis plates and mounting brackets are sold separately.
