Coil voltage = 24 V dc, 24 V ac
Contact arrangement = 2-pole changeover contact
Switching current = 40 A
Connection type = screw
Series = 22 Series
Switching voltage AC max = 440V ac
Application type = Power
Length = 53.5mm
Depth = 63.1mm
Height = 91mm
Dimensions = 53.5 x 63.1 x 95.8mm
Operating temperature min = -5°C

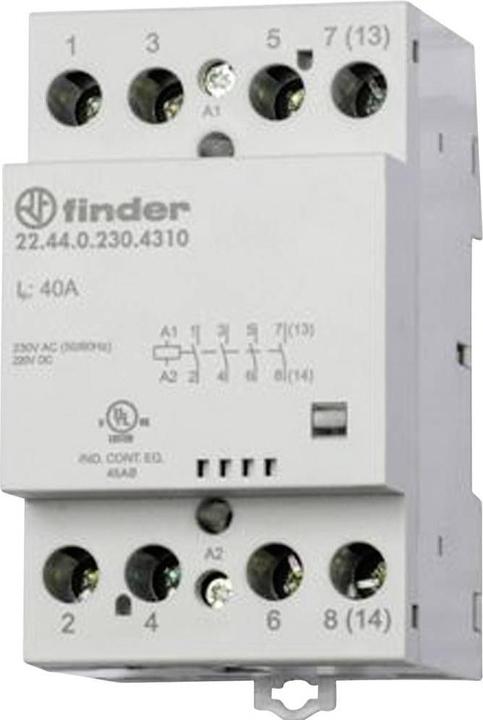

22.44 and 22.64 series - modular contactors. Finder 22 series 4-pole modular contactors, rail mounted, 4-pole. 40-63 A Continuous operation for coil and contacts AC/DC quiescent coil with varistor protection Protective separation (reinforced insulation) between coil and contacts Complies with EN 61095:2009 and EN 60947-4-1:2009 35-mm rail mount screw terminal Additional modules available for 22.44 and 22.64 (800-2916 and 800-2925).
