Coil voltage: 240V AC
Contact arrangement: 3-pole change-over contact
Switching current: 63 A
Connection type: Screw
Series: 22 Series
Switching voltage AC max: 440V AC
Application type: Power
Length: 53.5 mm
Depth: 63.1 mm
Height: 91 mm
Dimensions: 53.5 x 63.1 x 95.8 mm
Contact material: Silver alloy

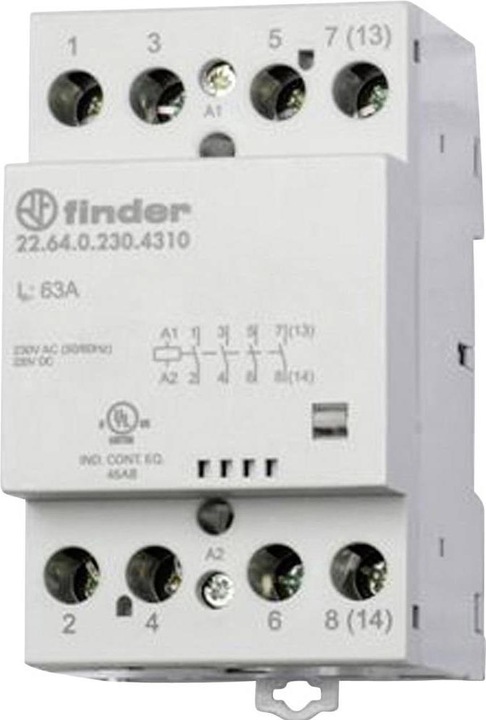

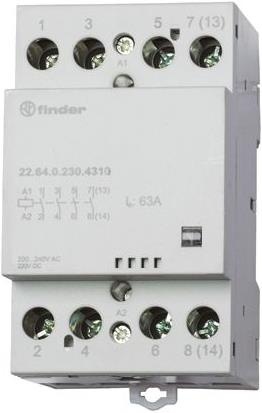

Series 22.44 and 22.64 are modular contactors. The Series 22 four-pole modular contactors from Finder are rail mount and support continuous operation for coils and contacts with a current rating of 40-63 A. They feature AC/DC quiescent current coils with varistor protection and protective separation (reinforced insulation) between coils and contacts. These products comply with EN 61095:2009 and EN 60947-4-1:2009 standards and are designed for 35 mm rail mounting with screw terminals. Additional modules are available for the 22.44 and 22.64 series.
