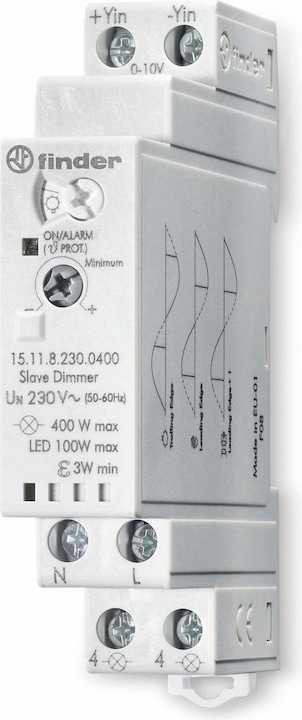

Electronic dimmer, 15.11 slave dimmer with phase-cut and phase-control dimming methods. Control input 0-10 V, adjustable load types for transformer and lamp loads up to 400 W, LEDs up to 100 W. The minimum brightness is adjustable. This electronic dimmer is used to regulate the lighting level. It can be controlled either via the optional master dimmer type 15.10 from Finder or by an analog signal from a higher-level building management system. The compact device is versatile as it covers a wide range of different lamp types, including dimmable LEDs or dimmable energy-saving lamps up to 100 W, halogen lamps, electronic or electromechanical transformers, as well as ballasts up to 400 W.

Technical data:

• Width: 17.5 mm
• Color: Gray
• Weight: 53 g
• Rated voltage: 230 V/AC
• Rated voltage range: 110 - 230 V/AC
• Product dimensions, height: 60.8 mm
• Switching power: 400 W
• Protection class: IP20.
