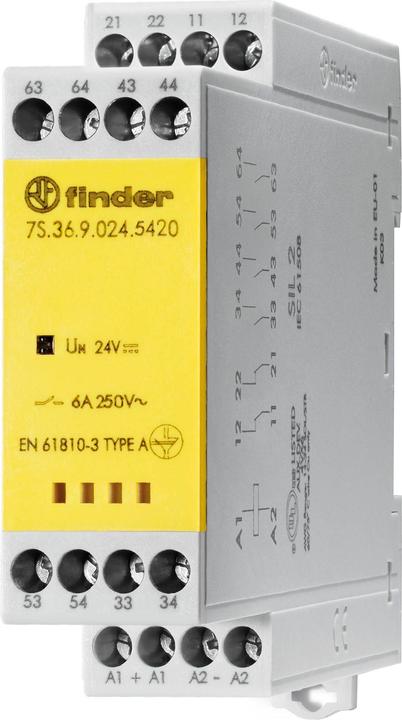

Finder relay module 7S.36.9.024.5420

Manufacturer: Finder
Designation: Relay module 4S, 2Ö, 6A
Type: 7S.36.9.024.5420
Electrical connection type: Plug-in connection
With detachable terminals: No
Rated current: 6 A
Rated control supply voltage Us at AC 50 Hz: 0 V
Rated control supply voltage Us at AC 60 Hz: 0 V
Rated control supply voltage Us at DC: 24 V
Voltage type for actuation: DC drive, polarity: Non-polarised
Switching behaviour of the drive: Monostable
Number of contacts as break contacts: 2
Number of contacts as make contacts: 4
With positively driven contacts: Yes
Type of switching contact: Single contact
Complete device with base: No
With LED display: Yes
Protection class (IP): IP20
Width: 22.5 mm
Height: 86.2 mm
Depth: 100.3 mm

Further details: Relay module with positively driven contacts according to EN 61810-3, type A. Basic component, suitable for safety applications which, if designed according to IEC/EN 62061 (IEC 61508), can achieve a safety integrity level of SIL 2. If the application is designed according to ISO/EN 13849, a performance level of PL d can be achieved in machine and plant construction. 4 NO + 2 NC contacts for 6 A, contact material AgNi-hard gold-plated, supply voltage 24 V DC, LED status display of coil control, materials comply with EN 45545-2:2013 for fire protection in rail vehicles, tested according to EN 61373 (vibration and shock, Cat. 1, cl. B) and EN 50155 (cold, dry and damp heat, temperature class TX), with screw terminals, for mounting rail 35 mm (EN 60715), width 22.5 mm, protection class IP 20.
