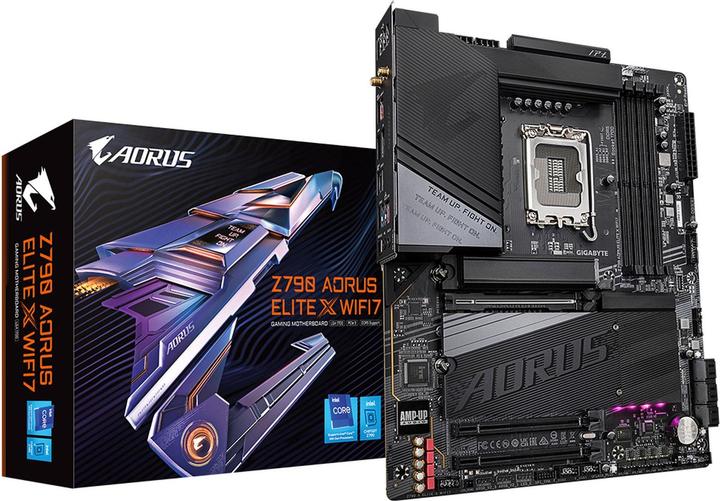

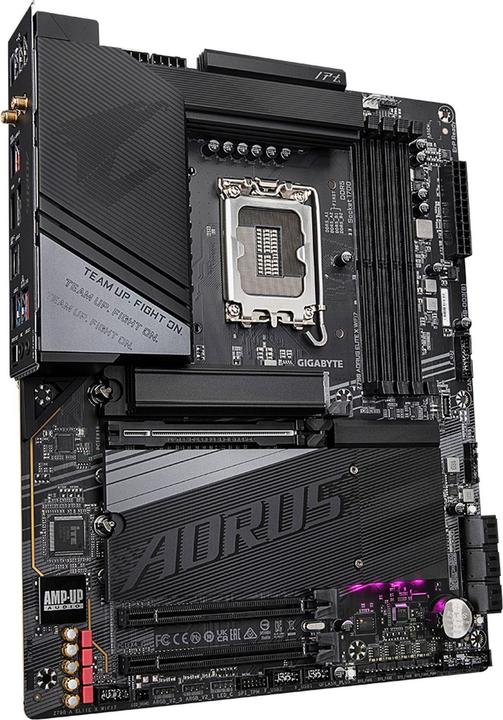

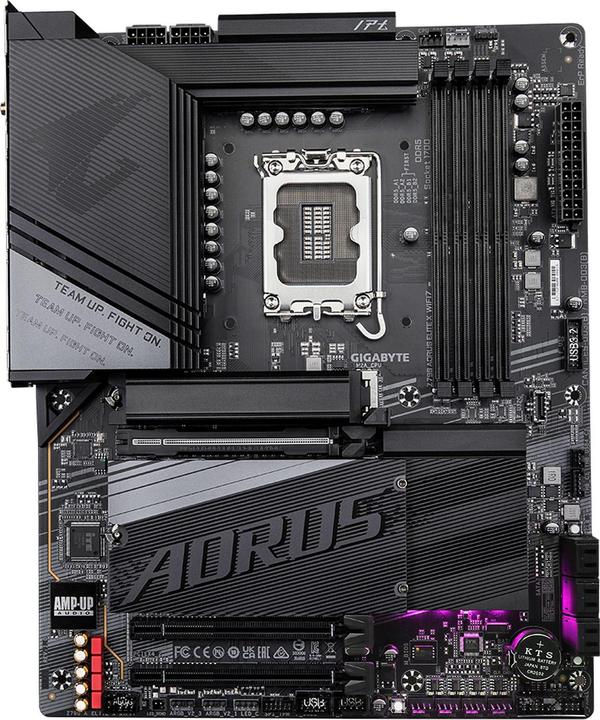

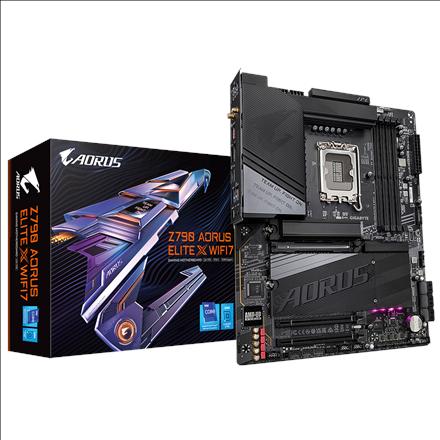

Gigabyte Z790 AORUS ELITE X WIFI7
LGA 1700, Intel Z790 Express, ATXOnly 3 items in stock
Product details
The ATX motherboard GIGABYTE Z790 A Elite AX WiFi 7 is an ATX motherboard featuring the high-end Intel Z790 chipset and LGA 1700 socket. This motherboard is compatible with desktop processors from Intel's 12th, 13th, and 14th generation Core CPUs, codenamed Alder Lake and Raptor Lake. It supports DDR5 memory with speeds of up to 8,266 MHz.
With an advanced voltage interface of 16+1 phases, this motherboard is suitable for overclocking. In addition to passively cooled voltage regulators, the GIGABYTE Z790 A Elite AX WiFi 7 impresses with additional features such as a reset jumper and a clear CMOS jumper.
Processor family | Celeron, Core i3, Core i5, Core i7, Core i9 |
Memory type | DDR5 RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | M.2 (4x), S-ATA III (6x) |
Wireless transmission | Bluetooth, Wi-Fi |
Mainboard features | Front panel audio connector |
Item number | 38703562 |
Manufacturer | Gigabyte |
Category | Motherboards |
Manufacturer no. | Z790 A ELITE X WIFI7 |
Release date | 27.9.2023 |
Sales rank in Category Motherboards | 298 of 872 |
External links |
Form factor | ATX |
Socket | LGA 1700 |
Chipset | Intel Z790 Express |
Mainboard features | Front panel audio connector |
Operating system compatibility | Windows |
BIOS type | UEFI AMI |
Wireless transmission | Bluetooth, Wi-Fi |
Wi-Fi standard | Wi-Fi 7 / 802.11be |
Processor family | Celeron, Core i3, Core i5, Core i7, Core i9 |
Memory form factor | DIMM |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 192 GB |
Memory chip | DDR5 |
Max. RAM OC | 8266 MHz |
Supported memory speed | 4000 MHz, 4800 MHz, 5200 MHz, 5400 MHz, 5600 MHz, 5800 MHz, 6000 MHz, 6200 MHz, 6400 MHz, 6600 MHz, 7800 MHz, 7900 MHz, 8266 MHz |
Memory type | DDR5 RAM |
RAM buffer | Unbuffered |

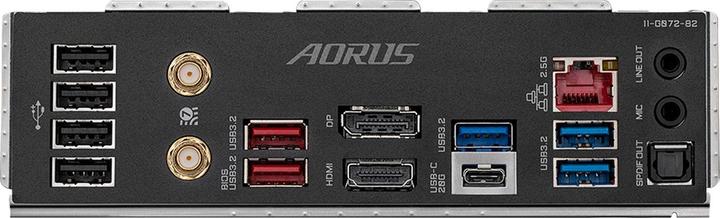

Video connections | DisplayPort (1x) |
Video connection version | Display port 1.2, HDMI 2.0 |
Network connections | RJ45 (1x) |
Ethernet controller brand | Realtek |
Ethernet controller | Realtek RTL8125 |
Max. port speed | 2.50 Gbit/s |
Chip | Realtek ALC1220-VB |
Audio channel | 7.1 Channel |
Audio Connections | Digital Audio Out (1x), Headphone output (1x), Microphone |
RAID configuration | 0, 1, 10, 5 |
Internal connection options | M.2 (4x), S-ATA III (6x) |
Expansion slot | PCI Express x16 (3x) |
PCI express version (max.) | 5 |
Number of fan connector | 4 |
USB ports | USB-A |
Exact USB ports | USB-A 3.2 Gen 1 (3x), USB-A 3.2 Gen 2 (2x) |
Power connectors | 24-pin ATX, 8-pin ATX 12V, 8-pin PCI-E |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Norton® Internet Security (OEM version), SATA |
Length | 244 mm |
Width | 305 mm |
Height | 35 mm |
Weight | 2520 g |
Length | 34 cm |
Width | 27.80 cm |
Height | 8.70 cm |
Weight | 2.23 kg |
