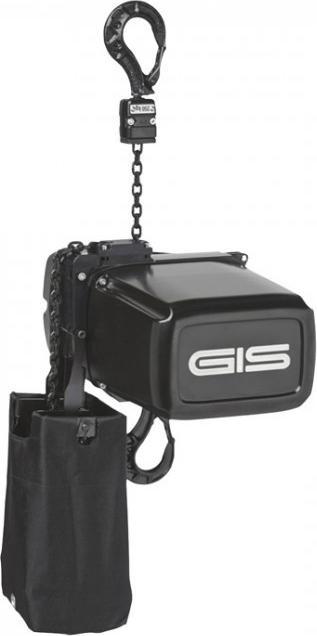

Two independent braking systems and a safety factor of 8:1 allow individuals to stand under the load without a secondary safety device. With direct control, the chain hoists can be easily combined into group hoists. The chain hoist complies with BGV D8+ as a modular chain hoist for lifting loads. The load capacity is 0.5 t in a single hooked chain hoist. The chain hoists are well-suited for both mobile and outdoor use. The upper and lower end positions can be individually and precisely adjusted. The optionally lockable load hook prevents the load from accidentally slipping off the hook.

Main features:

• Safety factor 8:1 according to DIN 56950:2012
• Model LP, single hooked
• Housing and cover made of aluminum

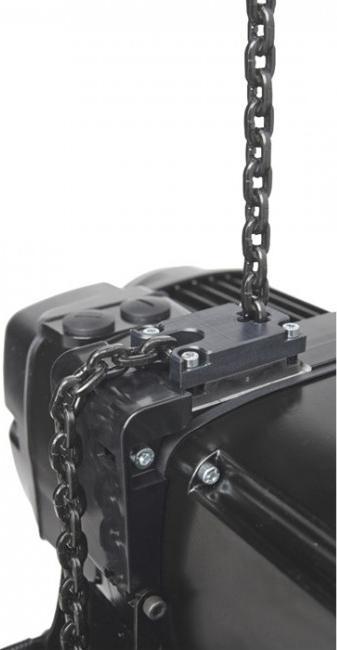

• Profile steel chain
• Dry-running slip clutch
• Gear end switch with high positioning accuracy
• Standard voltage: 400V-3Ph-50Hz
• Load capacity: 0.5 t
• Classification group: M5: Duty cycle; 40% 240 s/h (2m)
• Lifting speed: 4 m/min
• Standard lifting height: 20 m
• Protection class: IP65
• Insulation class F (Motor)
• Hook suspension

Included:

• Approx. 0.8 m power cable with 16A CEE plug, 5-pole red
• Double brake
• Chain bag.
