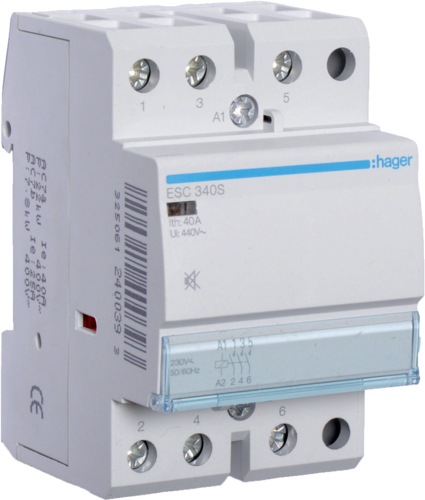

Hager Relay ESC340S
Manufacturer: Hager
Description: Noise-free relay 40A 3P 230V
Type: ESC340S
Rated operational voltage: 400 V
Rated operational current: 40 A
Usage category according to EN IEC 60947-4-1: AC-7a/AC-7b
Rated control voltage: 230 V
Type of operational voltage: AC
Type of control voltage: AC
Number of contacts as normally open: 3
Max. incandescent lamp load: 4000 W
Max. fluorescent lamp load: 1900 VA
Max. fluorescent lamp load (Duo circuit): 3000 VA
Max. fluorescent lamp load (parallel compensated): 1300 VA
Manual control switch: no
Width in modular units: 3
Installation depth: 60 mm
Additional devices possible: yes
With day/night function: no
Noise-free: yes
Protection class (IP): IP2X

Hager Relay ESC340S: further details
Installation relay noise-free 40A 3 normally open 230V. Noise-free relay according to DIN EN 61095 (VDE 0637-3) with contact position indication through a display window, integrated labeling field, and suitable for retrofitting additional devices. DC magnetic system with protection circuit against overvoltage and to limit interference voltage spikes, designed for noise-free continuous operation and ensures low switching noise. Note: When installing multiple devices directly, a spacer (1/2 PLE) must be installed next to every second device.
