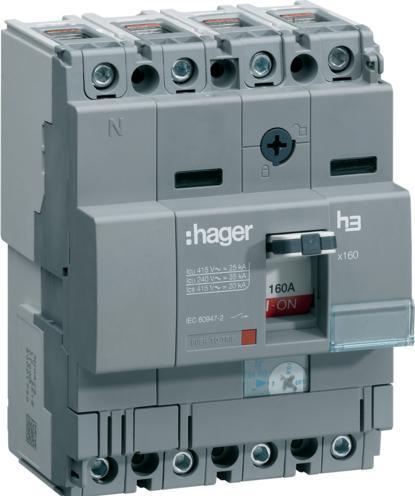

Hager Circuit Breaker HNA161H

Manufacturer: Hager
Designation: Circuit Breaker X160 4P 40kA 160A
Type: HNA161H
Rated Continuous Current Iu: 160 A
Rated Voltage: 220..415 V
Rated Short-Circuit Breaking Capacity Icu at 400 V, 50 Hz: 40 kA
Overload Relay Current Setting: 100..160 A
Setting Range of the Short-Time Delay Short-Circuit Release: 0 A
Setting Range of the Instantaneous Short-Circuit Release: 1600 A
Integrated Earth Fault Protection: no
Connection Type for Main Circuit: Screw Connection
Device Design: Built-in Device Fixed Installation Technology
Suitable for DIN Rail Mounting: yes
DIN Rail Mounting Optional: no
With Trigger Indicator: yes
With Integrated Under-Voltage Release: no
Number of Poles: 4
Position of Connection for Main Circuit: front
Design of the Actuating Element: Knob
Complete Device with Protection Unit: yes
Integrated Motor Drive: no
Optional Motor Drive: no
Protection Class (IP): IP40

The circuit breaker complies with DIN EN 60947-2 size x160, featuring thermal (adjustable) and magnetic (fixed) tripping for the protection of electrical installations and networks. It can be mounted on a DIN rail or mounting plate. The position of the knob indicates the three different operating states (ON = up, OFF = down, tripped = middle position). Frame terminals for Cu cables are included as standard. The switches are equipped with a mechanical test button. The functionality of the circuit breakers can be expanded with various accessories.
