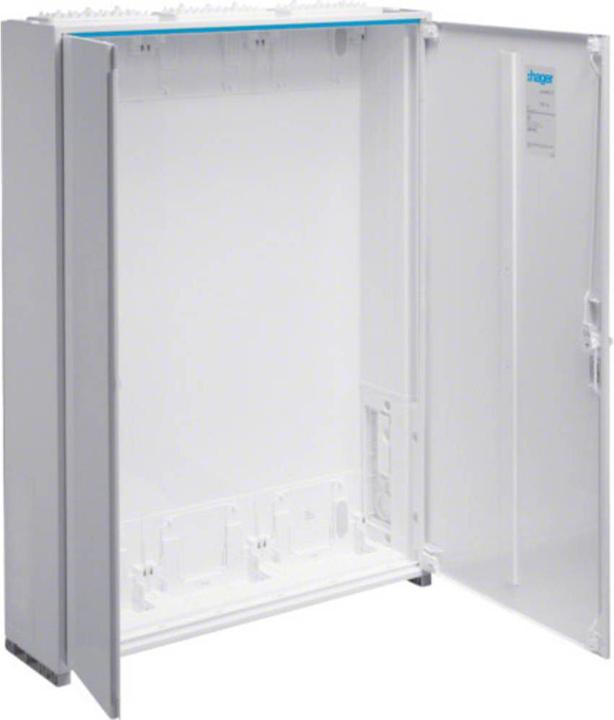

Cabinet housing according to DIN VDE 0603/1, dimensional standard DIN 43 870 for surface-mounted, flush-mounted, or partially recessed installation. Designed for the setup of a metering distribution system up to 355 A, nominal voltage 230/400 V 50 Hz.

Protection class IP31 (IP44/IP54 according to DIN VDE 0470/1), protection class II with protective insulation and protection class IP3X behind the door. The housing features a door made of powder-coated, baked, sturdy profiled 1 mm thick steel sheet. The interior is entirely made of plastic. Cable entries are located at the top and bottom through integrated plastic flange plates, with rear pre-forming in the plastic part and busbar entries as side pre-forming in the lower area on both sides.

The flush door has internal, adjustable hinges that can be mounted either on the right or left with an opening angle of 110°. The door lock features a bolt for widths of 800 mm and for all cabinets with a height of 1250 mm, equipped with a rod lock and a three-point locking system. The door lock can be replaced with other locks.
