Enclosure Material: ABS
External Dimensions: 50 x 50 x 20 mm
External Length: 50 mm
External Width: 50 mm
External Height: 20 mm
IP Protection Class: IP54
Color: Black
Cover Color: Black
With Flange: Yes
Series: 1551
Number of Cutouts: 0

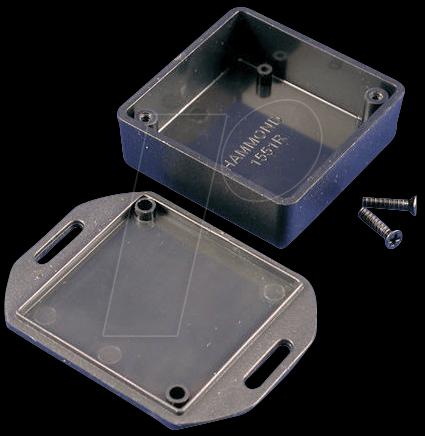

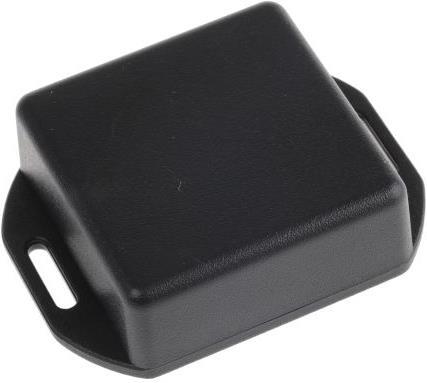

The dimensions do not include the cover (add 4 mm for the cover). Miniature plastic enclosure Hammond 1551, with flange. The Hammond 1551 series is a miniature enclosure molded from either black or gray universal ABS plastic and features a matte textured surface. Each enclosure has two PC board spacers molded into the interior and a construction with overlapping joints that provides protection against dust and splashing water according to IP54. The cover with mounting tabs is perfect for wall or rack mounting, or even for hanging with a cable tie.

Features and Benefits:

• Ideal for mounting small printed circuit boards or for use as a multipurpose enclosure
• ABS plastic with a satin matte finish
• Two PCB spacers, injection molded inside the enclosure
• Construction with overlapping joints for protection against dust and splashing water ingress, IP54

Frequently Asked Questions:
What does IP mean?
The IP protection class is used to determine the effectiveness of the sealing of electrical enclosures against the ingress of foreign bodies (tools, dirt, etc.) and moisture.

What is included in the delivery?
Enclosure with cover and color-matched screws.
