Harting Han DD module
9 pieces in stock at supplier
Product details

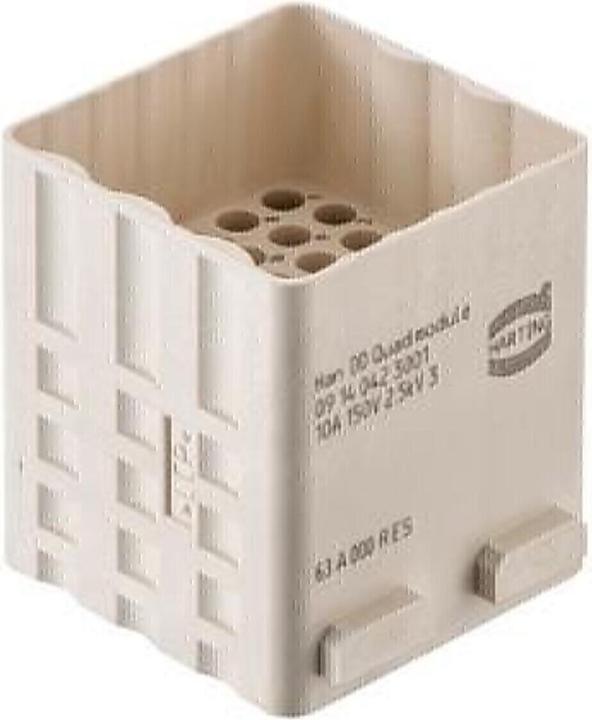

Harting Han DD module 09140423001
Manufacturer: Harting
Designation: Han DD module Han Quad pin
Type: 09140423001
Number of power contacts: 42
Contact insert without contacts: Yes
Contact design: Pin
Number of poles: 42
Material of connector insert: Thermoplastic
Rated current: 10 A
Operating temperature: -40 to 125 °C
Rated voltage: 150 V
Rated impulse voltage: 2.5 kV
Pollution degree: 3
Electrical connection design: Crimp connection
With wire protection: No
Connectable conductor cross-section fine-wire without ferrule: 0.14 to 2.5 mm²
Connectable conductor cross-section multi-stranded: 0.14 to 2.5 mm²
Material of contact coating: Other
Material of contact insert: Thermoplastic
Material of contact: Other
Flammability class of insulating material to UL 94: V0
Minimum number of mating cycles: 500
Harting Han DD module 09140423001: further details
Han DD Quad module, double module, crimp connection, pin, contacts: 42, conductor cross-section: 0.14 to 2.5 mm², rated current: 10 A, liquid-crystal polymer (LCP).
Cable + connector type | Plug connectors |
Item number | 37032269 |
Manufacturer | Harting |
Category | Cables + Plugs |
Manufacturer no. | 09140423001 |
Release date | 12.7.2023 |
External links |
Material group | Plastic |
Material | Liquid Crystal Polymer (LCP), Thermoplastic resin |
Cable + connector type | Plug connectors |
Temperature | -40 - 125 °C |
Max. temperature | 125 °C |
Min. temperature | -40 °C |
Country of origin | China, Germany |
CO₂ emissions | 84,15 kg |
Climate contribution | EUR 0,46 |
Items per sales unit | 1 pcs. |
