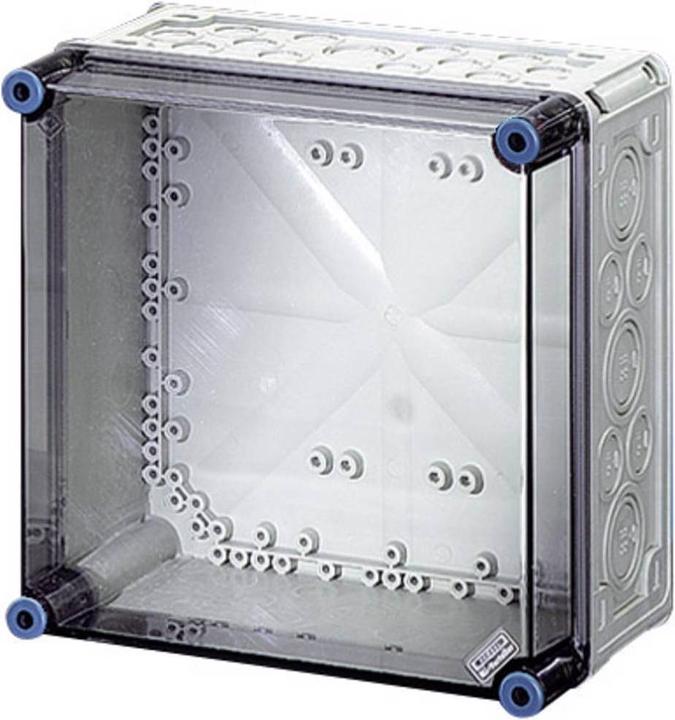

Hensel empty enclosure Mi 0200

Manufacturer: Hensel
Designation: Empty enclosure 300x300x170
Type: Mi 0200
Mounting type: Surface-mounted
Cover type: Lid
Lid design: Closed
Door type: None
Transparent lid/door: Yes
With lock: No

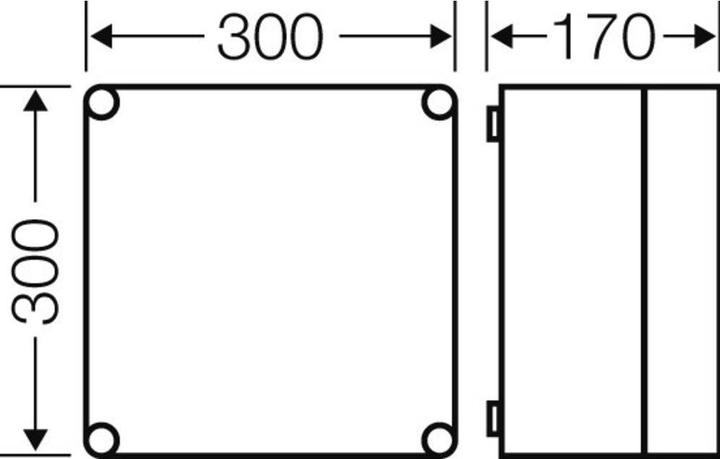

Height: 300 mm
Width: 300 mm
Depth: 170 mm
Installation depth: 146 mm
Internal depth: 146 mm
Material thickness of enclosure: 3 mm
Material thickness of door/lid: 3 mm
Color: Gray
RAL number: 7035
Number of modules: 1
Number of rows: 1
Number of openings for flange plates: 4
Mounting option: Yes
Number of cable entries: 40
Material of enclosure: Plastic
Surface protection: Untreated
With mounting plate: No
Suitable for outdoor use: Yes
Suitable for lightning protection: No
Protection class (IP): IP65
Protection class: II
Impact resistance: IK08
Function maintenance: None

Hensel empty enclosure Mi 0200: Additional details
Enclosure for the construction of energy switchgear combinations up to 630 A or as a standalone enclosure. Made of high-quality, protection-insulated polycarbonate. Wall penetrations with large openings for the electrical connection of enclosures to each other. Cable entry on all enclosure walls via metric pre-formed openings or mounting flanges. Enclosure can be mounted on the wall using external tabs or mounting rails. Empty enclosure with transparent lid. Installation dimensions W 275 x H 275 x D 150 mm for the installation of devices on a mounting plate or DIN rail. Max. installation depth with installed mounting plate 146 mm, with installed rail 135 mm. Lid locks operated with tools.
