For professional server applications

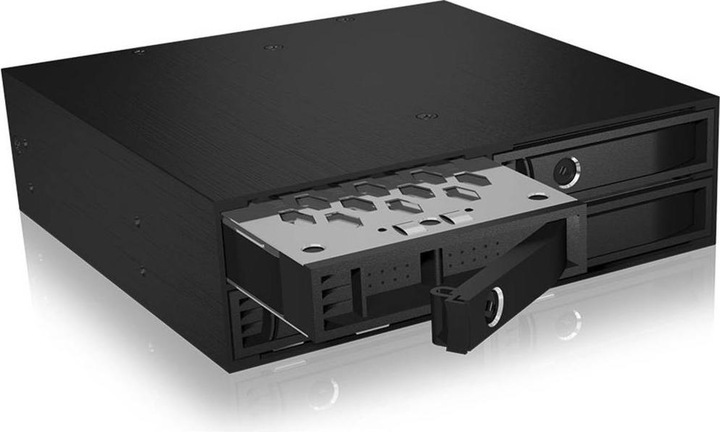

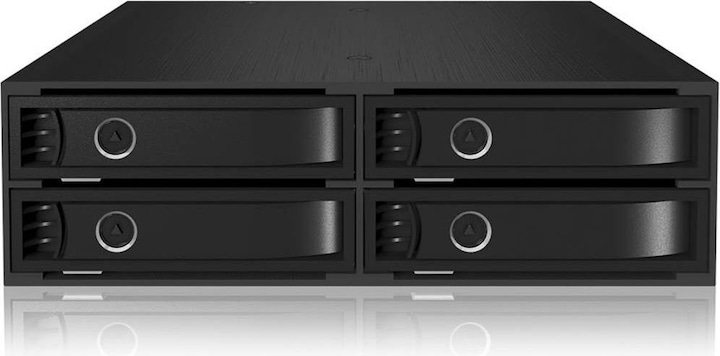

2.5" format hard drives are becoming increasingly popular. Their storage capacity is growing, making them suitable for use in servers. Therefore, ICY BOX now offers a backplane that fits into a 5.25" unit and accommodates four 2.5" SATA or SAS hard drives. The height of the hard drives can reach 15 mm for maximum storage capacity.

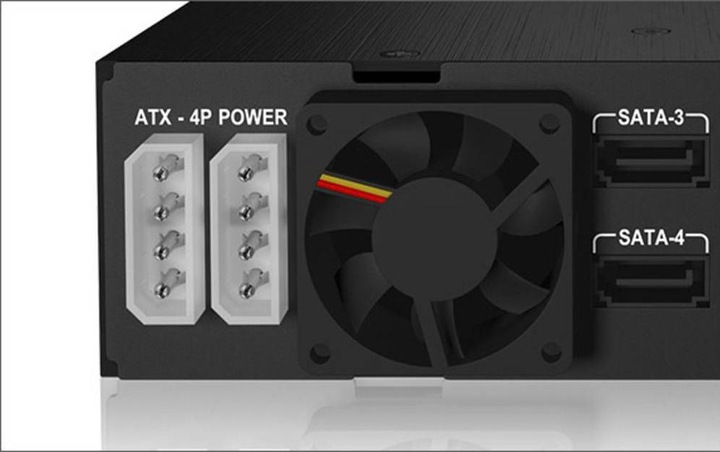

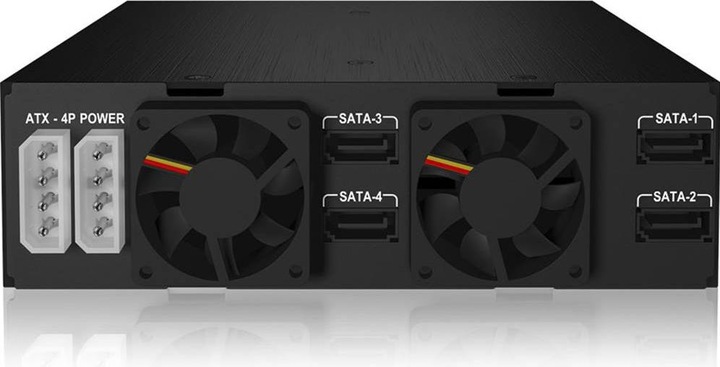

This ICY BOX operates extremely stable even under very high data throughput. Therefore, we particularly recommend it for demanding applications in RAID systems. The temperature control is correspondingly elaborate. The aluminum housing provides cooling, and the two 40 mm fans operate reliably and quietly. Everything is as solid and secure as one would expect from the proven ICY BOX backplanes for "the big ones."

Main features

Storage media
Installed storage drives: None
Type of installed storage drive: None
Supported storage drives: Hard drive, SSD
Number of supported storage drives: 4
Storage drive interface: Serial ATA III
Size of storage drive: 2.5"
RAID support: Yes
Hot-swappable drive bays: Yes

Network
Built-in Ethernet port: No
Wi-Fi: No

Connections and interfaces
USB: No

Design
Case type: Desktop
Product color: Black
Case material: Aluminum
Number of fans: 2
Fan diameter: 4 cm

Performance
Type: Storage server.
