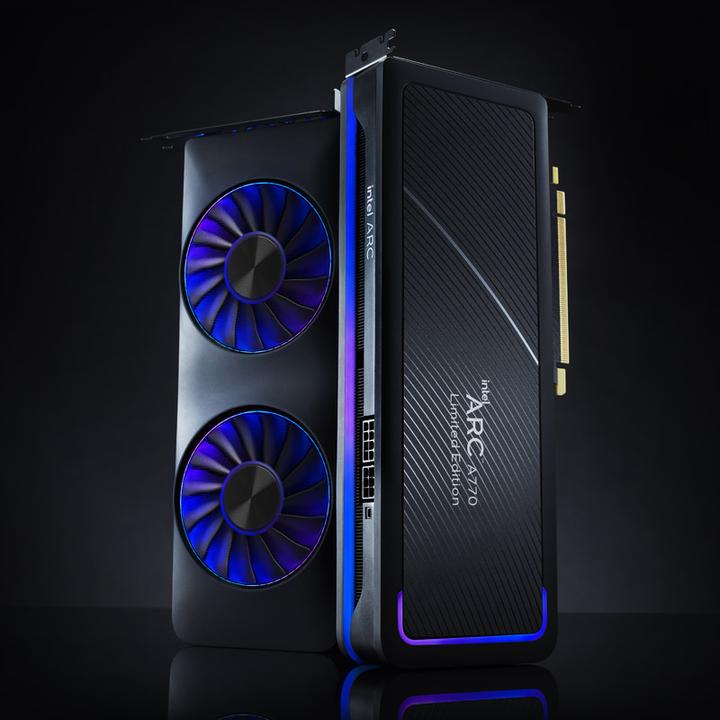

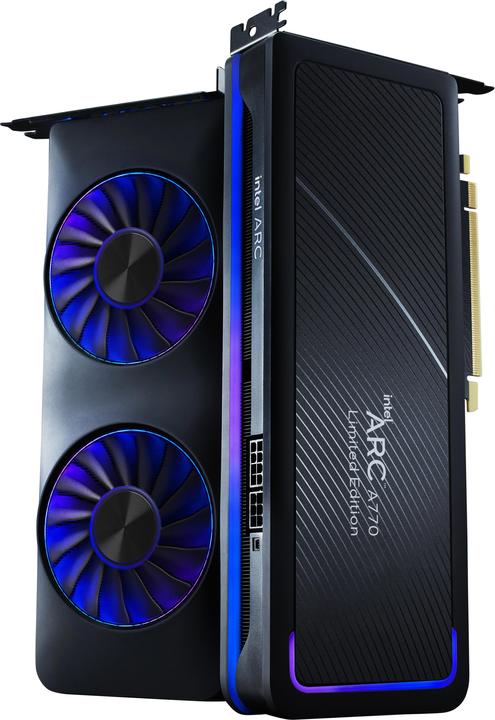

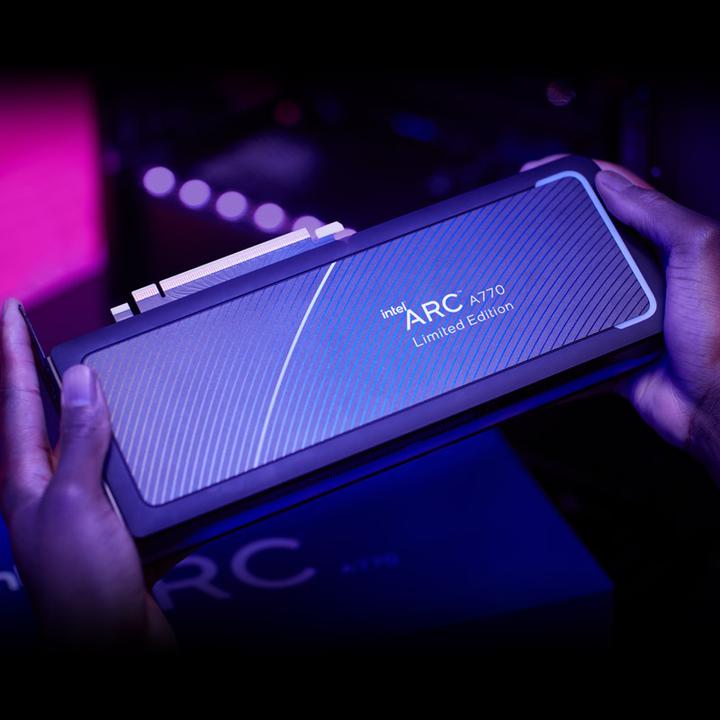

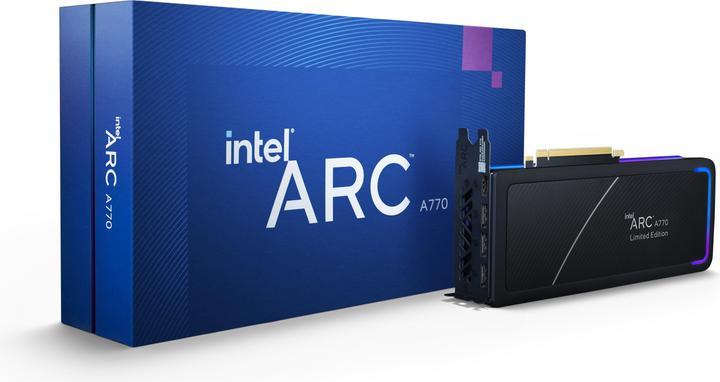

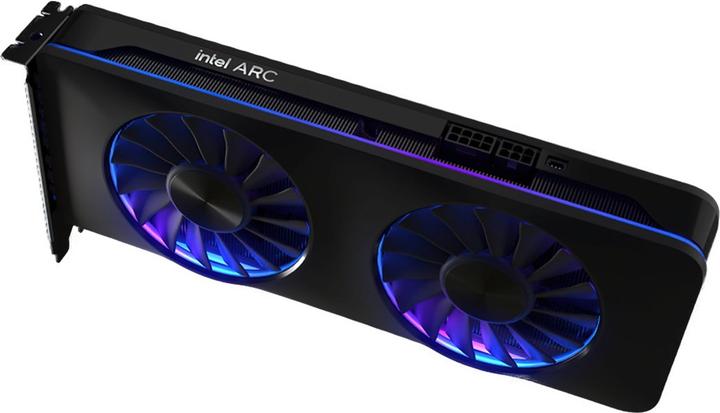

Intel ARC A770

16 GB
9Ratings
Test reportsGood based on 2 tests
Currently out of stock

Product details

Bring your creative projects to life with excellence by utilizing the AI-enhanced multimedia engine accelerated by Intel Deep Link technology. Create captivating content with the first graphics card compatible with current multimedia formats, and stay up-to-date with the most advanced AV1 video encoding capabilities.

The HPG Xe microarchitecture of the Intel Arc 770 graphics card with 16 GB GDDR6 is designed to provide gamers and creatives with top-tier performance, efficiency, and scalability. Benefit from the Xe cores with integrated XMX AI capabilities, advanced 3D acceleration hardware, and support for ray tracing.

Key specifications

Length
28 cm
Number of shaders
4.10 x
Graphics card model
Arc A770
Video memory clock
17.50 GHz
Max. connected monitors
4 x
Max. Video resolution
7680 x 4320 pixels
Power consumption
225 W
Item number
24042843

General information

Manufacturer
Intel
Category
Graphics card
Manufacturer no.
21P01J00BA
Release date
17.1.2023

Graphics card properties

Max. connected monitors
4 x
PCI Express version
PCIe 4.0
Max. Video resolution
7680 x 4320 pixels
Expansion card form factor
2 slots
LED colour
RGB

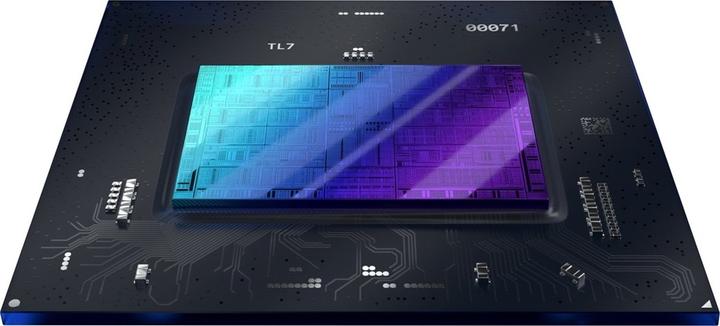

Graphics processing unit

Graphics chip (GPU)
Intel Arc Graphics
Graphics card model
Arc A770
Clock frequency
2100 MHz
Boost frequency
2400 MHz
Number of shaders
4.10 x

Video memory

Video memory type
GDDR6
Storage capacity
16 GB
Video memory clock
17.50 GHz
Memory Interface
256 bits
Memory Bandwidth
560 GB/s

Cooling properties

Graphics card cooling system
Active cooler
Number of fans
2 x

Graphics card technologies

DirectX version
12
OpenGL version
4.60

Connections

Video connections
DisplayPort (3x), HDMI (1x)
HDMI version
2.1
DisplayPort version
1.4

Power supply

Power consumption
225 W

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Length
28 cm
Width
18.67 cm
Height
4.20 cm

Package dimensions

Length
38.30 cm
Width
22.30 cm
Height
8.90 cm
Weight
1.66 kg

Legal Notice

Product Safety

Compare products

Goes with

Reviews & Ratings

Statutory warranty score

How often does a product of this brand in the «Graphics card» category have a defect within the first 24 months?

Source: Galaxus
  • 4.ASUS
    1,2 %
  • 4.Gigabyte
    1,2 %
  • 6.Intel
    1,3 %
  • 6.MSI
    1,3 %
  • 6.Sparkle
    1,3 %

Statutory warranty case duration

How many working days on average does it take to process a warranty claim from when it arrives at the service centre until it’s back with the customer?

Source: Galaxus
  • Intel
    Not enough data
  • 1.Sparkle
    0 days
  • 2.KFA2
    1 day
  • 2.XFX
    1 day
  • 4.Acer
    5 days

Return rate

How often is a product of this brand in the «Graphics card» category returned?

Source: Galaxus
  • 15.Powercolor
    9,6 %
  • 16.Sparkle
    9,9 %
  • 17.AsRock
    10 %
  • 18.Acer
    11,2 %
  • 19.Intel
    12,2 %
Source: Galaxus

Translation: machine translated
Overall ratingGood75/100
Good75/100
CHIP OnlineSingle testReleaseJune 2023
  • PositiveGood performance in Full HD games
  • PositiveStable graphics performance
  • PositiveCompact
  • NegativeIncreased power consumption
  • NegativeOnly limited use for higher resolutions

The Intel Arc A770 Limited Edition performs satisfactorily in tested. The somewhat more powerful brother of the Intel Arc A750 achieves slightly better results in the benchmarks. On the other hand, the cooling is not as efficient and the fan is minimally louder. Especially in view of the acceptable purchase price, the small weaknesses are forgivable - there are hardly any upper limits for graphics...

Without ratingNo rating
CT Magazin Logo
CT MagazinSingle testReleaseJanuary 2023
  • Positivedignified appearance
  • Positive16 GByte memory (for non-players)
  • NegativePower thirsty in idle mode

The A770 LE is only slightly faster than the Asrock A750 in games, so the surcharge of 80 euros is not justified. However, the more comfortable memory cushion of 16 GBytes is practical for non-gaming applications such as 3D rendering with Blender.
