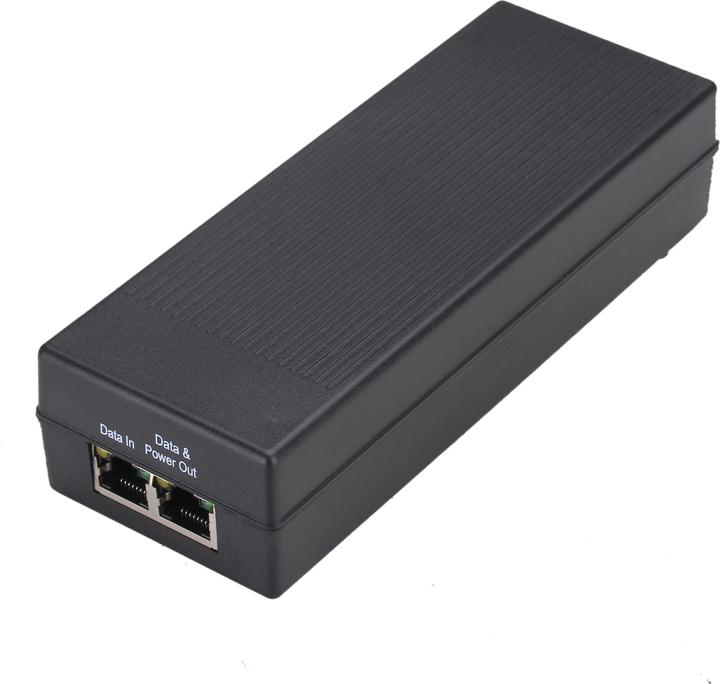

Jovision PI30 - PoE Injector, 30 W
This PoE injector is a PoE power supply with one Ethernet data input port and one Ethernet data output port with 48 V voltage (IEEE 802.3af). Any Ethernet Cat. 5 data cable can be plugged directly into the input port. Data transfer and power supply are both provided through the data cable.
Input voltage: 100 - 240 V AC
Output voltage: 48 V DC
Network standard: IEEE802.3i 10 BASE-T, IEEE802.3i 100 BASE-TX, IEEE802.3x flow control, IEEE802.3af
PoE supply: 30 W via output port; power supply via PIN 1236; data cable: Cat. 5 or higher; built-in power adapter
Voltage (PIN): 1 and 2 (+), 3 and 6 (-)
Data transfer: 10/100/1000 Mbps
Installation: Plug and play installation (automatic recognition of PoE supply)
Product dimensions: 165 x 62 x 38.5 mm.
