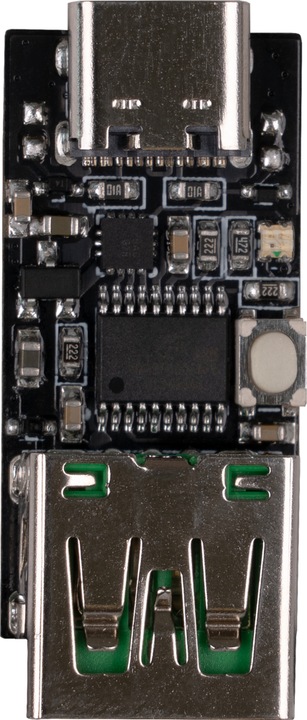

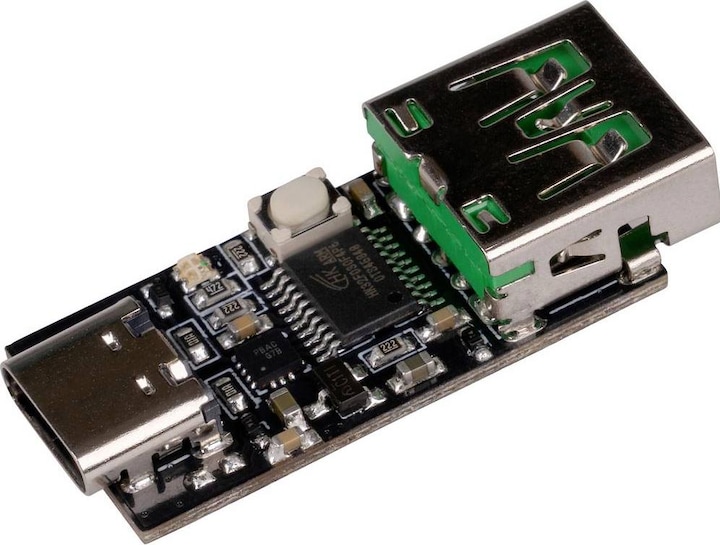

With this small module, you can trigger USB-PD protocols, allowing you to charge your laptop using a PD-capable USB-C power supply, for example. The output voltage can be adjusted in 5 steps (5 V, 9 V, 12 V, 15 V, and 20 V) using the button integrated into the module. The currently selected voltage can be read from the color of the RGB LED built into the module. The module is flexible in its application due to its output interfaces and is easy to integrate.

Main features:

• Number of supported devices: 2
• Power:
• Input voltage: 5 - 20 V
• Power consumption (max.): 100 W
• Current: 5 A

Weight and dimensions:

• Width: 35 mm
• Depth: 15 mm
• Height: 10 mm.
