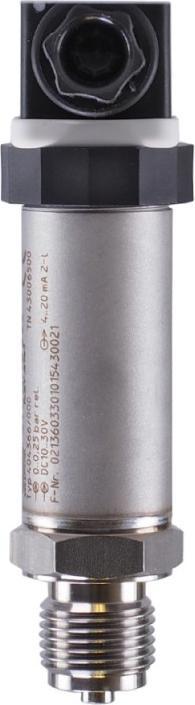

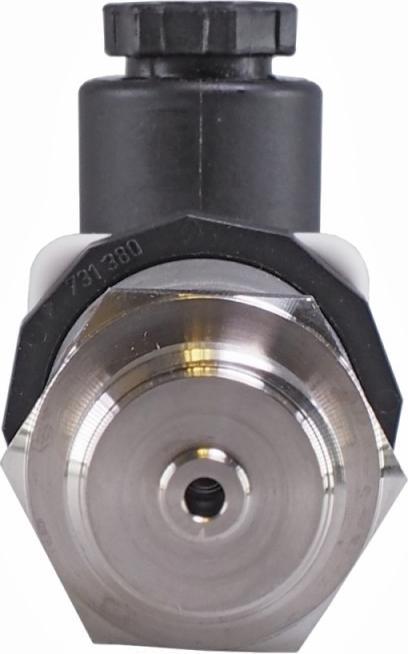

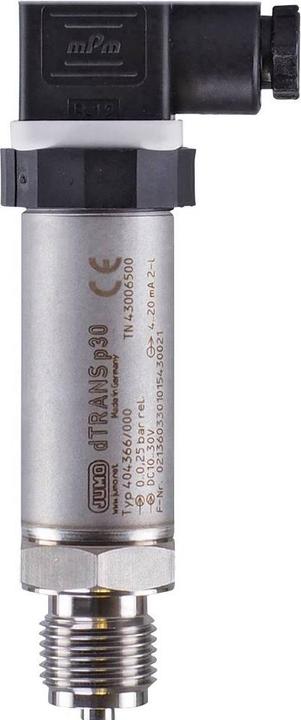

Jumo Pressure Transmitter 43006500

Manufacturer: Jumo
Designation: Pressure Transmitter 0-250 mbar rel, 4-20 mA
Type: 43006500
Process Temperature: -30 to 120 °C
Analog Output 0 mA to 20 mA: no
Analog Output 4 mA to 20 mA: yes
Analog Output 0 V to 2 V: no
Analog Output 0 V to 5 V: no
Analog Output 0 V to 10 V: no
Analog Output 2 V to 10 V: no
Ambient Temperature: -20 to 100 °C
Weight: 0.2 kg

The pressure transmitter can be used in liquid and gaseous media. The completely welded measuring system requires no seals and ensures maximum process safety. The core component is a piezoresistive measuring cell that is safe, reliable, and temperature-resistant with high overload capacity and long-term stability. Thanks to the high-quality materials used for the pressure-contacting parts (stainless steel 316 L / 316 Ti) and a wide temperature range of -30 to +120 °C, the pressure transmitter can be utilized in various industrial applications.
