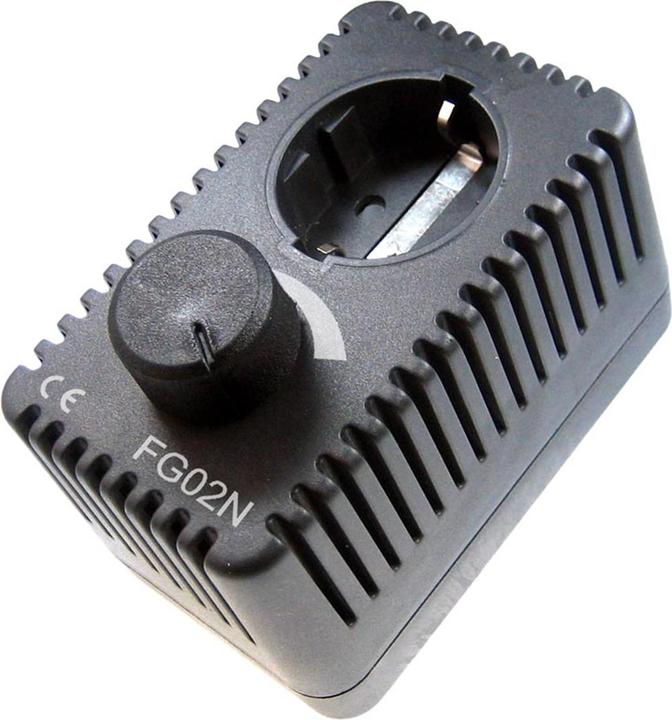

With the Kemo FG002N power controller, resistive or inductive 230 V/AC loads that can be controlled with a phase-cut control can be continuously regulated in power. The controller has CE approval for loads up to 400 W. It can also regulate loads up to 800 W, but an additional interference filter must be installed beforehand. For short periods (maximum 3 seconds), loads up to 1600 W can also be regulated (e.g., for high inrush currents for electric motors, only with an extra interference filter installed beforehand). Resistive loads include electric heaters, soldering irons, etc. Devices that already have built-in control electronics cannot be connected. For indoor use only!

Technical Data

• Operating voltage: 180-240 V/AC
• Load: max. 400 W
• Load with additional interference filter: max. 800 W
• Short load capacity: (max. 3 sec) 1600 W

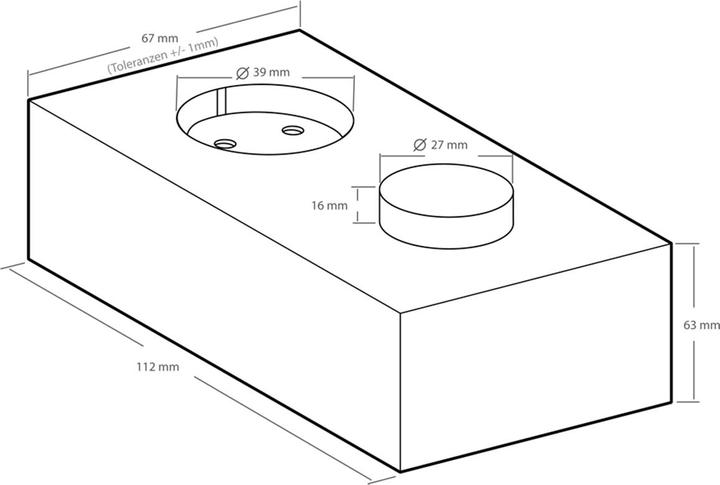

• Dimensions: approx. 112 x 67 x 63 mm (without plug)

Connection Notes:

Devices that cannot be controlled with a phase-cut control must not be connected. This includes, for example, motors with starting capacitors and synchronous motors. The built-in interference filter is designed for loads up to a maximum of 400 W. If larger loads are to be connected (max. 800 W continuous operation, max. 1600 W for a maximum of 3 seconds), then a suitable interference filter must be connected before the power controller. This filter is not included.

Delivery Contents:

1x Kemo FG002N 230 V power controller.
