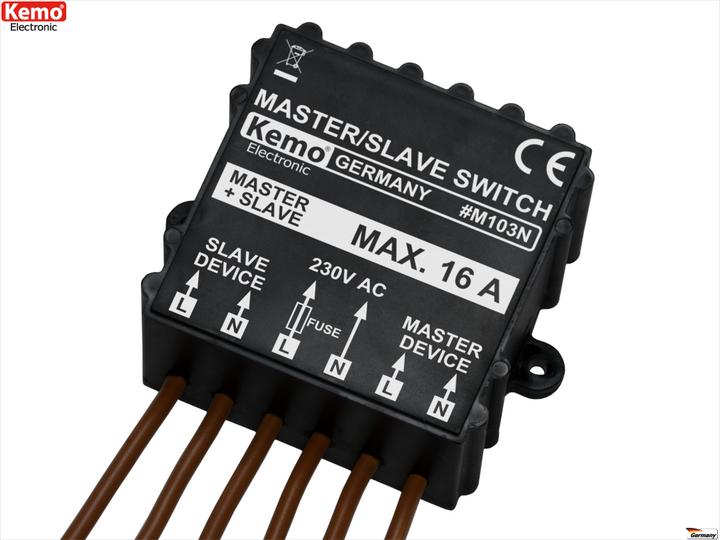

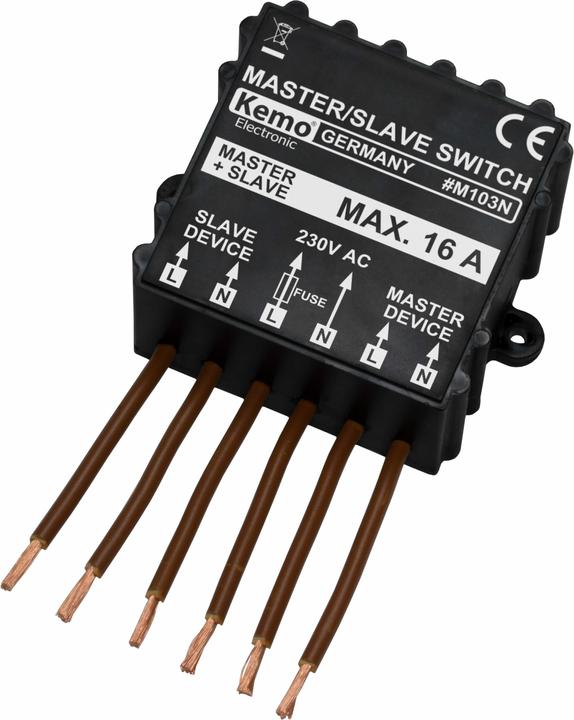

The Kemo Master/Slave (MPN M103N) automatically switches on another device when a machine, lamp, etc. is turned on. It can monitor single-phase or three-phase (three-phase) machines (one phase is sampled). Single-phase devices (e.g., vacuum cleaners) can be automatically switched on at the output (or three-phase consumers via a relay, not included). Max. 15 A each, max. total power: 3600 W. Please refer to the download for the connection example.

Technical data:

• Operating voltage: 230 V/AC
• Max. currents: 15 A for the Master, 15 A for the Slave, but the total current must not exceed 16 A!
• Trigger power: The module switches at currents of approx. Ø 40 mA or less
• Operating temperature range: approx. –15 ºC to +70 ºC
• Switching function: Relay contact 1 x ON max. 16 A
• Own power consumption: Module <0.5 W
• Dimensions: without mounting tabs approx. 67 x 65 x 37 mm
• Connection: via connection cable (individual wires)
• Standards: EN 55014-1: 2018-08 Emission, EN 55014-2: 2016-01 Immunity, EN 61000-3-2: 2019-02 Harmonics, EN 61000-3-3: 2020-07 Voltage fluctuations / Flicker

Scope of delivery:

1x Kemo Master/Slave switch.
