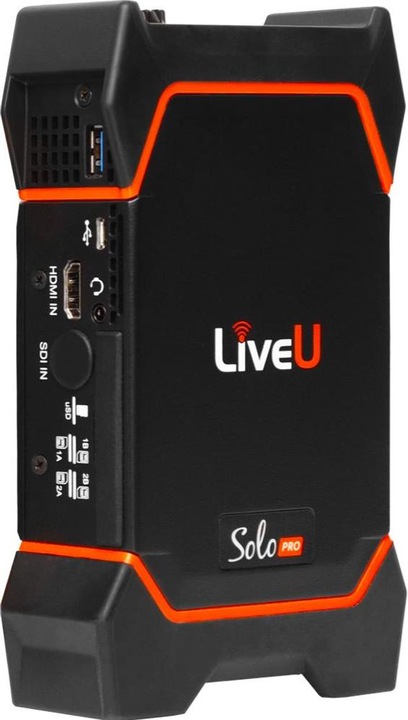

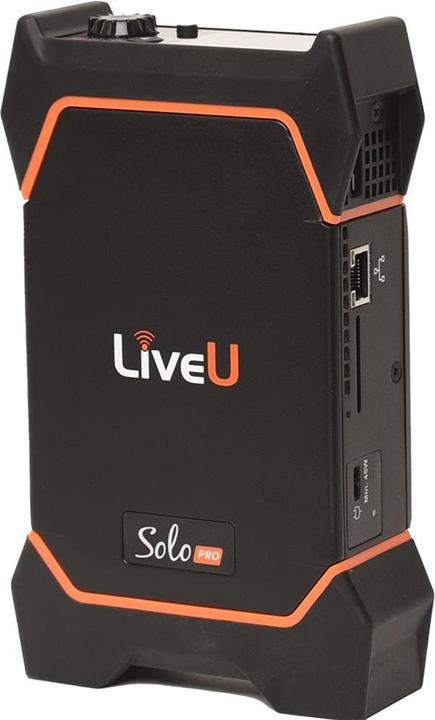

LiveU Solo Pro HDMI

Professional 4K video encoder for high-quality live streams with HDMI 2.0 input.

Features:

• Video encoder with live streaming function up to 4Kp60 at up to 20 Mbps to Facebook, YouTube, Twitch, Vimeo, and other networks.

• Combines up to 6 IP connections via 4 external cellular modems (4G/5G), WLAN, or Ethernet using LiveU's LRT bonding protocol.

• Supports H.265/HEVC or H.264 encoding.

• Allows the connection of an external USB-C battery for longer battery life.

• Local control unit to start and stop the stream.

• Display indicator with video preview and bitrate status.

• Full remote control of the unit via the mobile-optimized LiveU Solo web portal.

Technical data:

• Encoding (video): H.265/HEVC, H.264.

• Encoding (audio): AAC-LC.

• Protocol: LRT, RTMP, RTMPS.

• Internet bonding: Up to 4 network connections (4 external mobile modems (4G/5G), WLAN, Ethernet).

• Battery life: Approximately 3 hours.

• Control: Local (integrated 2.2 display), External (Web UI via smartphones, laptop, tablet, or web browser).

• Display: Video preview, status of mobile phone connection per network (data rate, delay, etc.).

• Wireless: WLAN 802.11a/b/g/n/ac (integrated MIMO antennas).

Supported formats:

• 4Kp60, 50, 30, 25, 24.

• 1080p60, 50, 30, 25, 24.

• 1080i60, 50.

• 720p60, 50.

• PAL / NTSC.

Inputs:

• 1 HDMI 2.0, Video In.

Further connections:

• 1 RJ45, Ethernet, Streaming.

• 2 USB-A 2.0.

• 1 USB-C, power input (minimum power 45 W).

General:

• Dimensions: 112.5 x 188 x 54.5 mm.

• Weight: Approximately 912 g.
