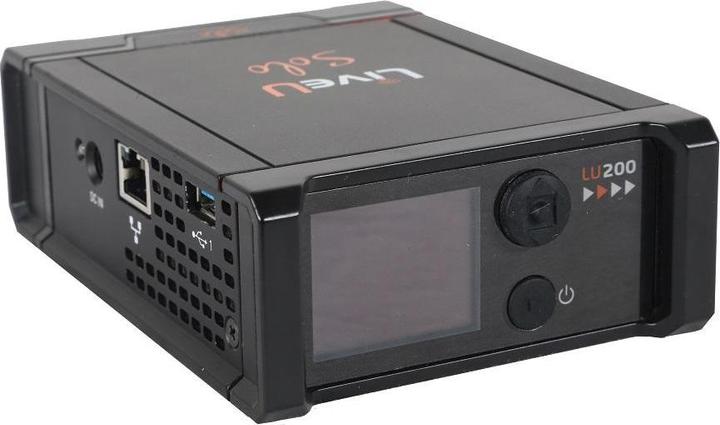

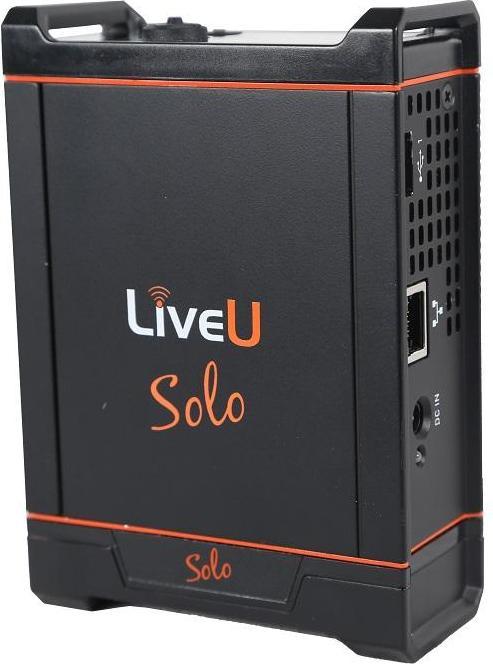

LiveU Solo SDI / HDMI

LiveU Solo offers the best "plug and play" live streaming technology, combining the bandwidth of multiple internet connections into a single broadcast line with maximum signal strength. The compact Solo unit makes LiveU's expertise in video broadcasting available to online media.

SUPPORTED INPUT FORMATS

HD

1920 x 1080 progressive with 60/50/30/25/24 fps

1920 x 1080 interlaced with 60/50 fps

HD (720p):

1280 x 720 progressive with 60/50/30/25/24 fps

SD

720 x 576 (PAL) progressive / interlaced with 25 fps

720 x 480 (NTSC) progressive / interlaced with 29.97 fps

SUPPORTED STREAMING FORMATS

Video Codec: H.264 AVC

Video Transport: RTP

Audio Codec: AAC-LC (Advanced Audio Coding)

SIMULTANEOUS CONNECTIONS

Simultaneous connection of up to 2x 4G LTE/3G cellular or WiMAX network links; Supports additional integrated Wi-Fi and Ethernet connections

Supported technologies: 4G LTE, HSPA+, HSUPA, UMTS, CDMA EVDO Rev 0/A/B, mobile WiMAX, and internal Wi-Fi 802.11 a,b,g & n support

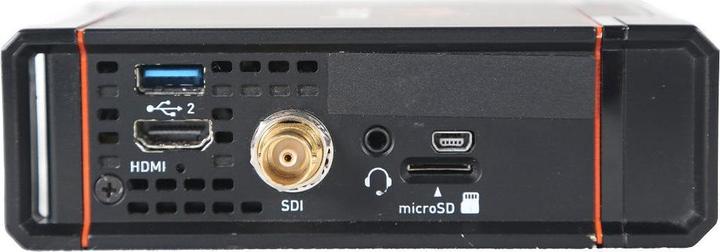

CONNECTIONS

2x USB 2.0

1x Mini USB

1x RJ-45 Ethernet

1x 3.5 mm in/out stereo jack

1x HDMI
1x SDI

1x Micro SD

GENERAL PRODUCT INFORMATION

Dimensions (WxHxD): 9.5 x 13.2 x 4.3 cm

Weight: 518 g (with battery)

Battery life: approx. 2 hours (internal battery)

Operating temperature: -5° to +45° C

• Incl. cloud service, bonding and support for one year (each additional year costs 400.00 EUR net)

• Cloud bandwidth and streaming service for maximum bandwidth and absolute reliability when transporting the LiveU

• up to 300 GB data pack per month

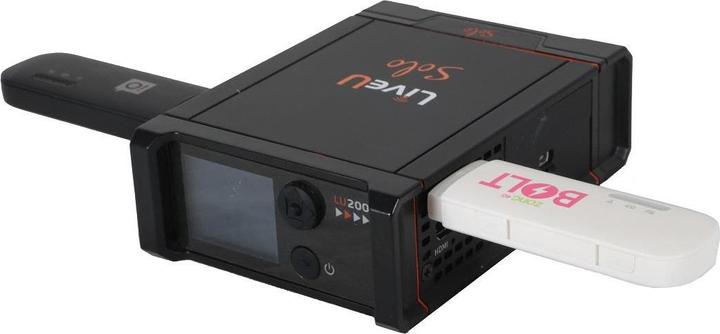

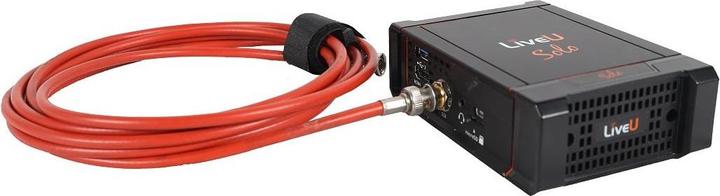

*Cables and sticks shown here are not included in the scope of delivery.
