Magic doesn't necessarily have to be accompanied by superficial showmanship and simple tricks. The Chinese manufacturer MagiCool, on the contrary, offers solid water cooling technology with an excellent price-performance ratio.

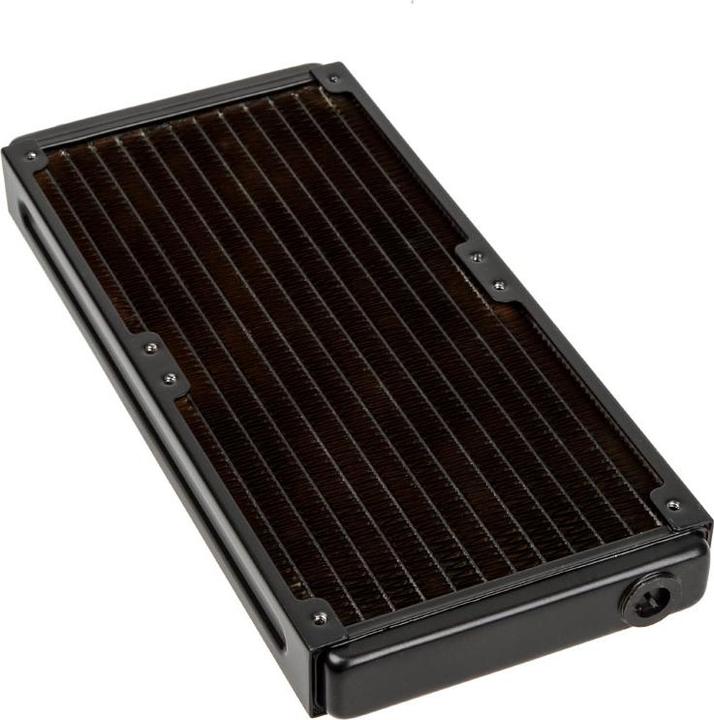

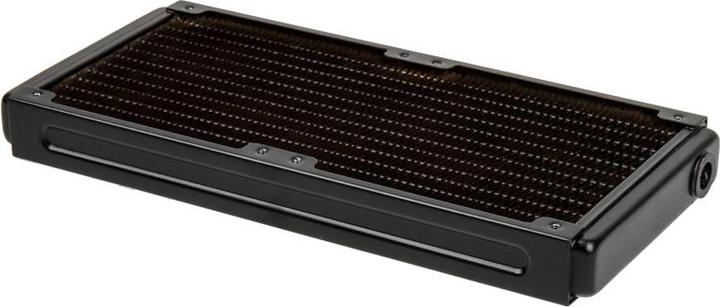

With the Xflow-Copper series, MagiCool has launched a special line of radiators that feature an inlet on one end and an outlet on the other, rather than the usual configuration of both at the same end, which simplifies hose routing in many systems. At the same time, the radiators, with a thickness of only 27 mm, are ideal for situations where space is limited—thanks to copper fins with 16 FPI, there is no compromise on cooling performance. The fans can be mounted either on one side or both sides—this dual variant allows for the installation of up to four 120 mm fans.

When purchasing an Xflow-Copper heat exchanger, it's important to consider not only the height of 27 mm but also the length, which is 272 mm for this dual model—plus the connections, which are mounted directly on the end faces and feature a G1/4-inch thread each. The necessary screws for mounting two fans and securing the unit in the case are included, as well as two decoupling frames for vibration damping.

Technical details:

• Dimensions: 120 x 27 x 272 mm (W x H x D)
• Weight: approx. 580 g
• Material: Copper (fins), Brass (chambers)
• Color: Black
• Compatible fans: dual-sided 2x 120 mm
• Fin density: 16 FPI
• Pressure tested up to: 1.5 bar
• Thread: 2x G1/4 inch

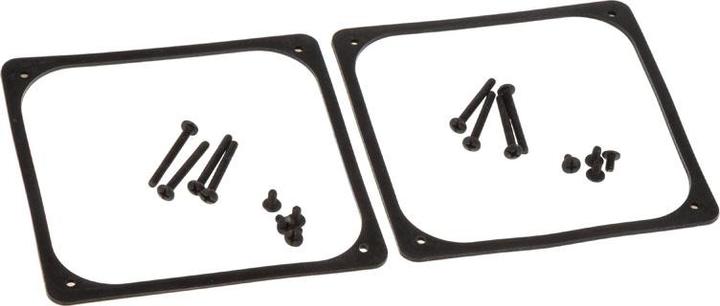

• Delivery includes:
• 8x UNC 6-32 long screws (30 mm)
• 8x UNC 6-32 short screws (5 mm)
• 2x decoupling frames.
