Output voltage = 12V dc
Output current = 9.4A
Rated power = 140W
Input voltage = 113 → 370 V dc, 80 → 264 V ac
Mounting type = front panel mount
Package Type = Open Frame
Length = 101.6mm
Width = 50.8mm
Depth = 29mm
Hum and noise voltage = 100mV ss
Load regulation = ±1%
Mains regulation = ±0.5%
Temperature min. = -30°C
Temperature max. = +70°C
Weight = 190g

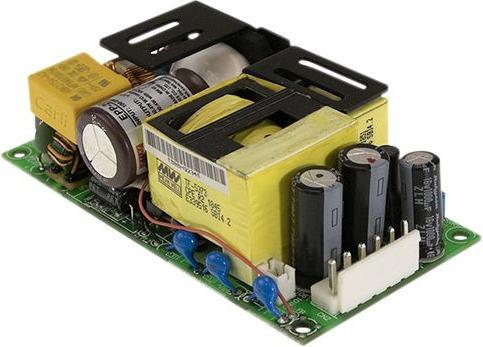

TÜV EN60950-1, UL60950-1, IEC60950-1. Switching power supply, EPP-200 series. The EPP-200 is an exceptionally reliable LP power supply. The EPP-200 can be used with Class I (with FG) and Class II (no FG) designs. The EPP-200 is designed for use in various industrial applications. Features and benefits. Miniature design Universal AC input Integrated active PFC function Power consumption at zero load High efficiency Protection against short circuit, overload, overvoltage and overtemperature Free-air convection cooling for 140 W and 200 W with 10CFM forced ventilation Power supply for integrated fan 12 V/0.5 A LED operation indicator. Field of application. Industrial automation systems Industrial control system Mechanical and electrical equipment Electronic measuring instruments, devices and apparatus.
