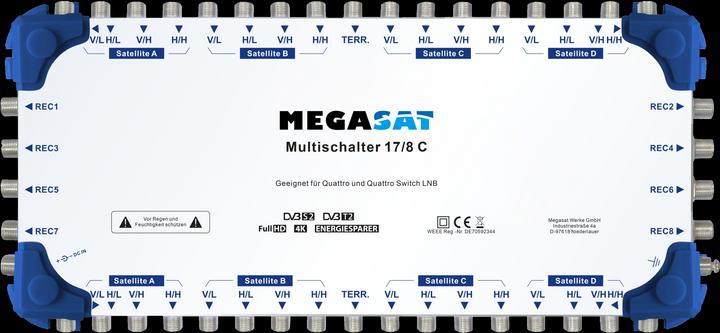

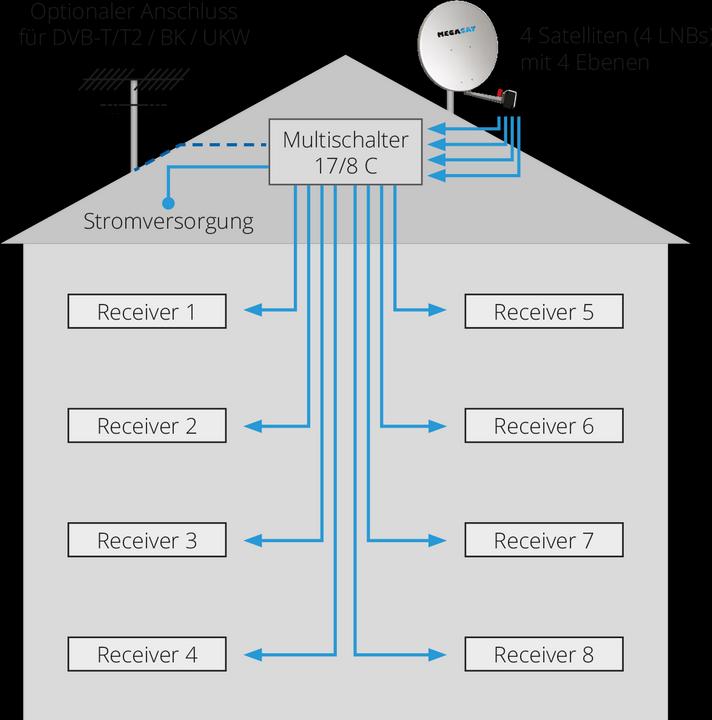

The Megasat Multiswitch 17/8 C is the perfect solution for receiving signals from up to four satellites for eight participants and also offers the possibility of expansion with additional multiswitches. Thanks to state-of-the-art cascading technology, the distribution can be flexibly adapted to individual requirements – ideal for central or floor distributions.

With Quad LNB (Quattro-Switch LNB) compatibility, the multiswitch can be easily integrated into existing systems or added later. The precise signal processing ensures high decoupling of the reception levels and minimal attenuation – even over longer cable runs, the signal quality remains at the highest level.

With the Megasat Multiswitch 17/8 C, you benefit from maximum flexibility, easy expandability, and top-notch picture and sound quality – for a perfect television experience in any environment.

Technical specifications:
Frequency range DVB-S/S2: 950 – 2250 MHz
Frequency range DVB-T/T2: 47 – 862 MHz
Attenuation DVB-S/S2: 3 dB
Attenuation DVB-T/T2: 3 dB
Switching isolation: 28 dB
Decoupling DVB-S/S2: 28 dB
Decoupling DVB-T/T2: 25 dB
Output level DVB-S/S2: 100 dBμV
Output level DVB-T/T2: 85 dBμV
LNB power supply: max. 2000 mA
Power supply: AC 90 ~ 260 V, DC 18 V, 47 ~ 63 Hz
Operating temperature: -20° C ~ +50° C

Inputs:
4 × DVB-S/S2 (Horizontal High)
4 × DVB-S/S2 (Horizontal Low)
4 × DVB-S/S2 (Vertical High)
4 × DVB-S/S2 (Vertical Low)
1 × DVB-T/T2
1 × DC In

Outputs:
8 × DVB-S/S2 (to the receiver)
4 × DVB-S/S2 (Horizontal High)
4 × DVB-S/S2 (Horizontal Low)
4 × DVB-S/S2 (Vertical High)
4 × DVB-S/S2 (Vertical Low)
1 × DVB-T/T2

Scope of delivery:

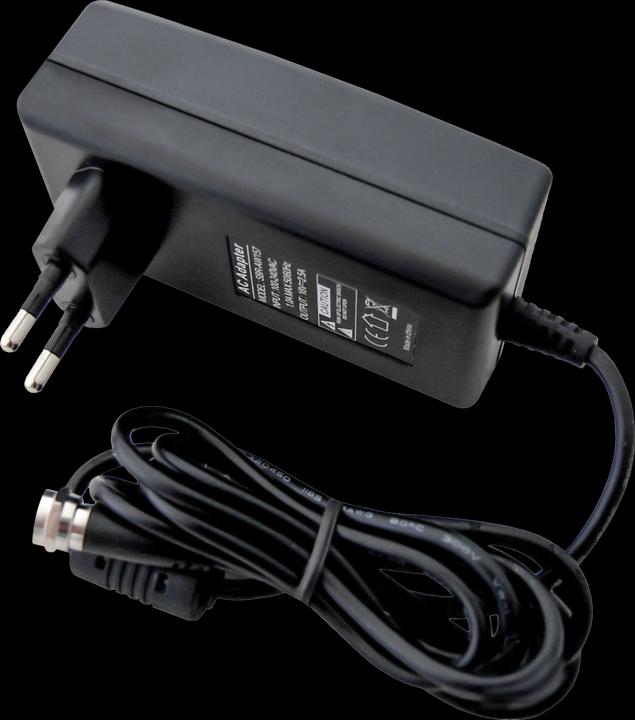

Megasat Multiswitch 17/8 C, power supply, user manual.
