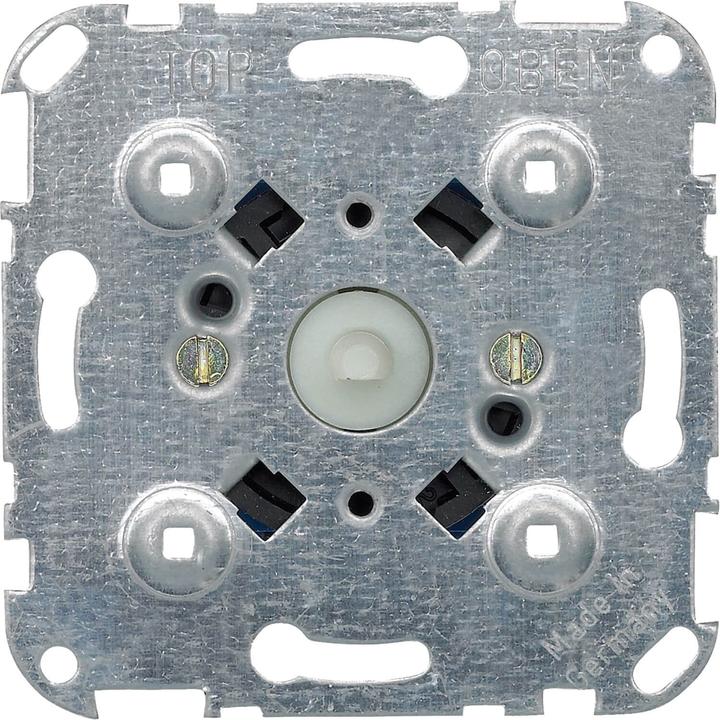

Merten Rotary Switch Insert 317400

Manufacturer: Merten
Description: Rotary switch insert 3-stage
Type: 317400
Configuration: Flushmounting insert
Operation type: Rotary knob
Switching type: Switch 0 - 1 - 2 - 3
Mounting type: Flushmounted
Material: Metal/plastic
Material quality: Other
Halogen-free: Yes
Surface finish: Matte
Transparent: No
Suitable for protection class (IP): IP20
Rated current: 16 A
Nominal voltage: 250 V
Mounting method: Screw mounting
Min. depth of device box: 45 mm

Merten Rotary Switch Insert 317400: additional details
For switching fans for air conditioning units, heating systems, or range hoods in three different stages. To be completed with central plate for three-stage rotary switch System M 5672xx, 4373xx, 5388xx, System Surface 3169xx.
EAN: 4011281615353.
